3-in-1 Core System (HTII / DUB / 3D+)
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

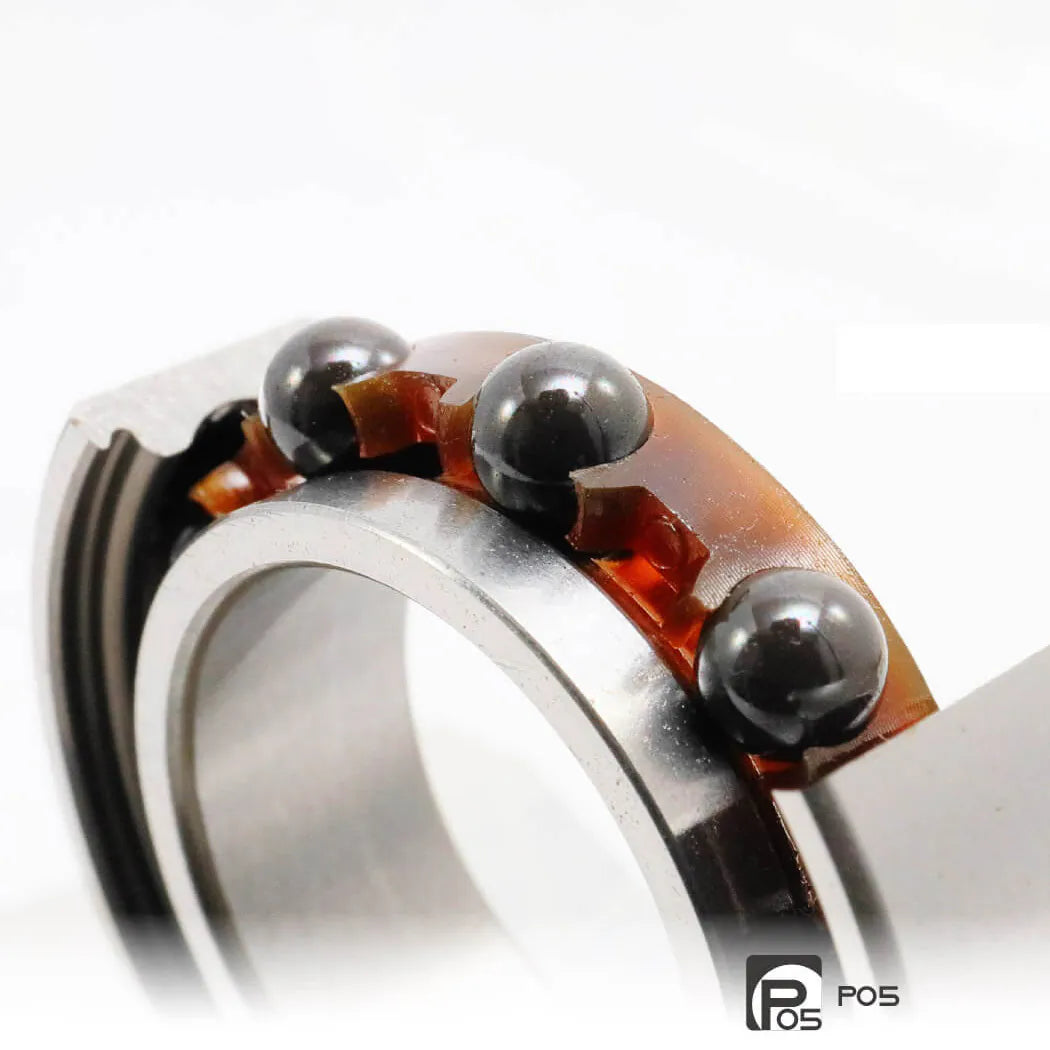

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.
The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.
SPECIFICATIONS
T45 82.5mm (Road) : 3-in-1
Frame Spec: T45 DIA.45mm x Width 82.5mm
Crank Spec: SHIMANO HTII (dia.24mm)/ SRAM DUB (dia.28.99mm)/ ROTOR 3D+ (dia.30mm)
Bearing: G5 Ceramic Bearing/ P05 Steel Bearing
Tool Notch: Notch : 12T O.D. : 50mm
Material: Cup : Alloy 6061/ Sleeve : Alloy 6061
Accessories: 30mm Cap*2/ 28.99mm Cap*2/ 28.99mm Spacer*1 (Drive Side)/ 24mm Cap*2
Weight: G5 : 82g/set (w/o cap)/ P05 : 85g/set (w/o cap)
