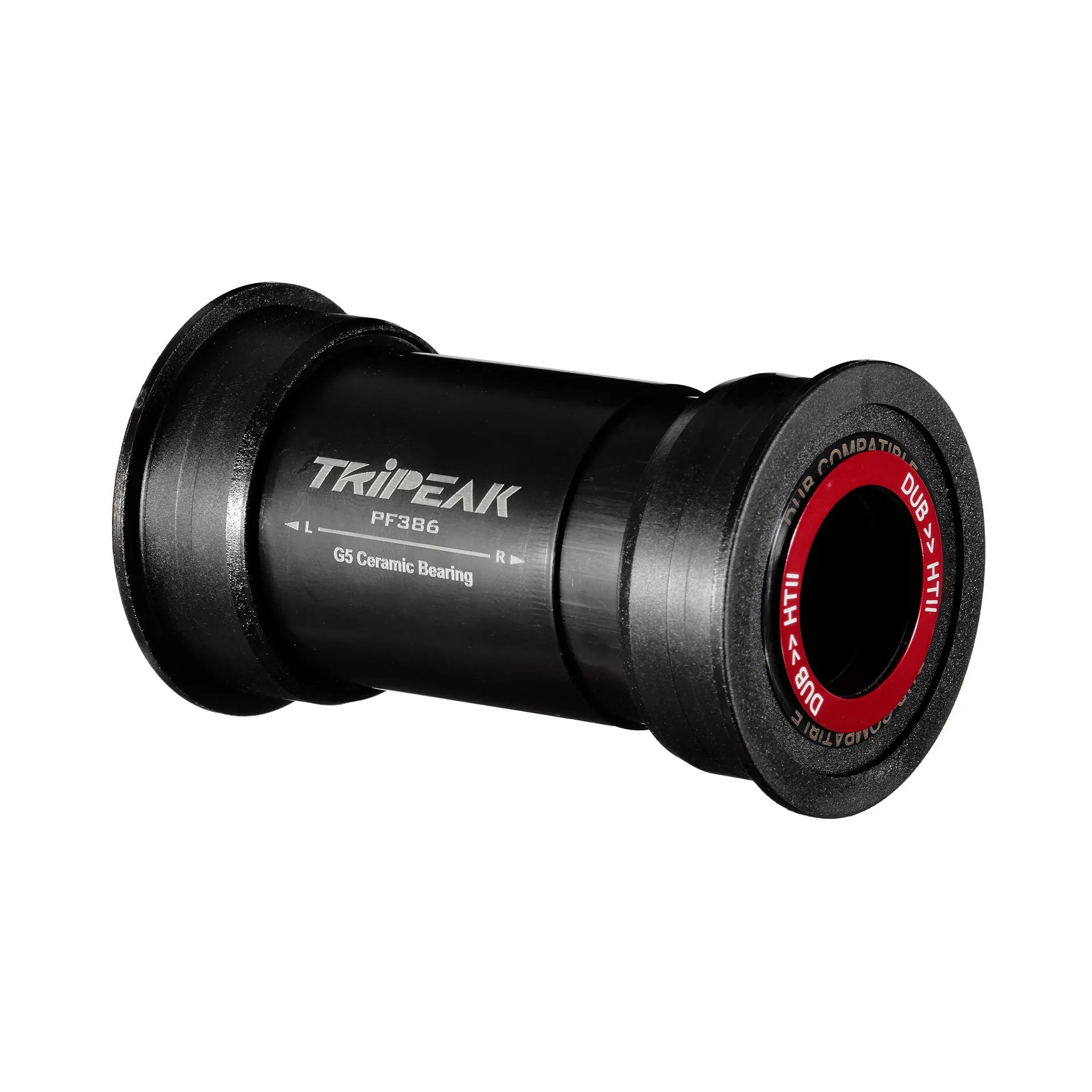

Tripeak Press-Fit BB386 86.5mm 3in1 Bottom Bracket (30mm,DUB,HG24)

◆ TRiPEAK PRESS-FIT BB (Plastic Cup )

◆ 3-in-1 Core System (HTII / DUB / 3D+)

◆ G5 Ceramic Bearing / P05 Steel Bearing

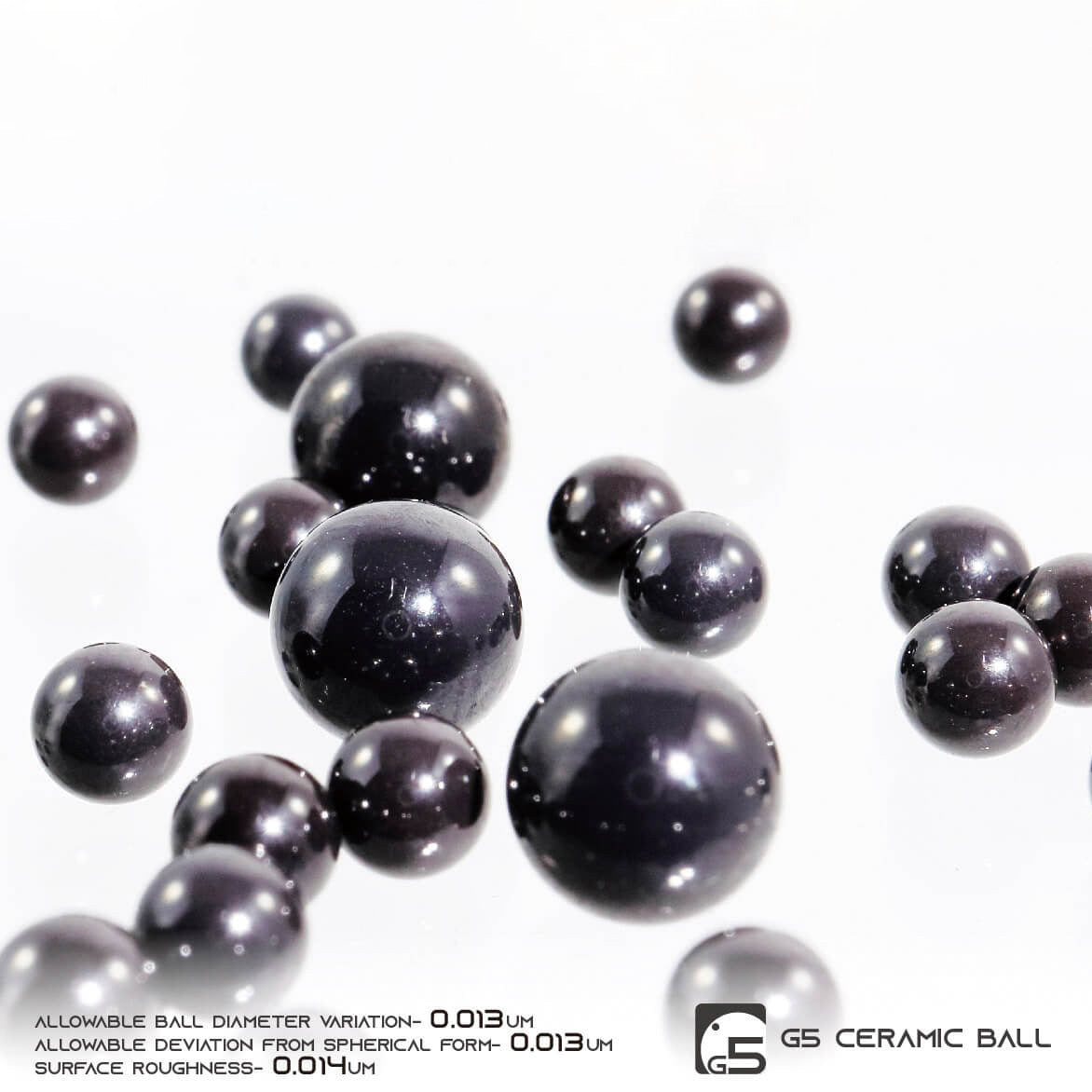

The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.

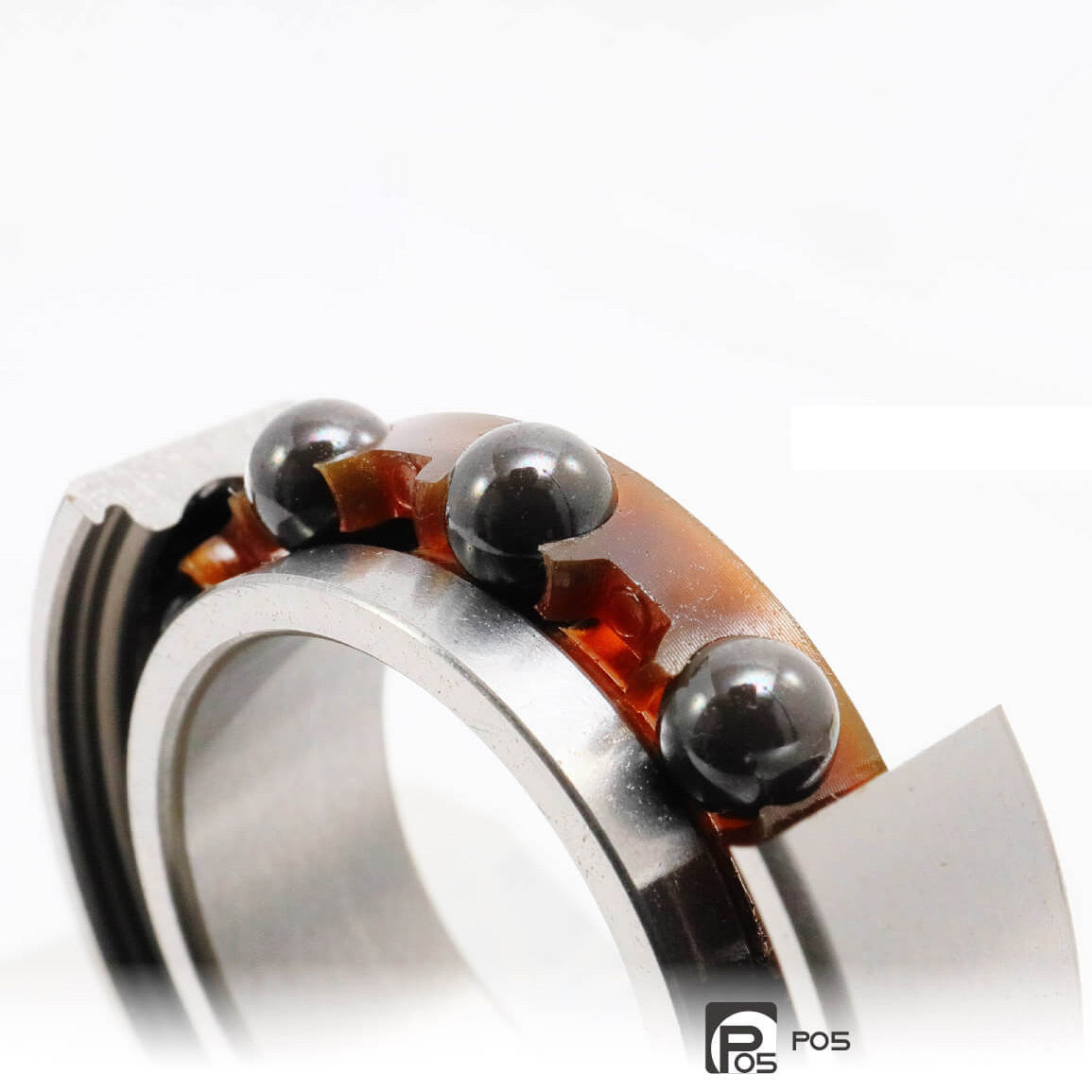

The P05 precision steel ball bearings, for reassuringly high smoothness and durability. 0.005 mm for eccentricity (out of roundness) of the track in the inner race. That´s precise.

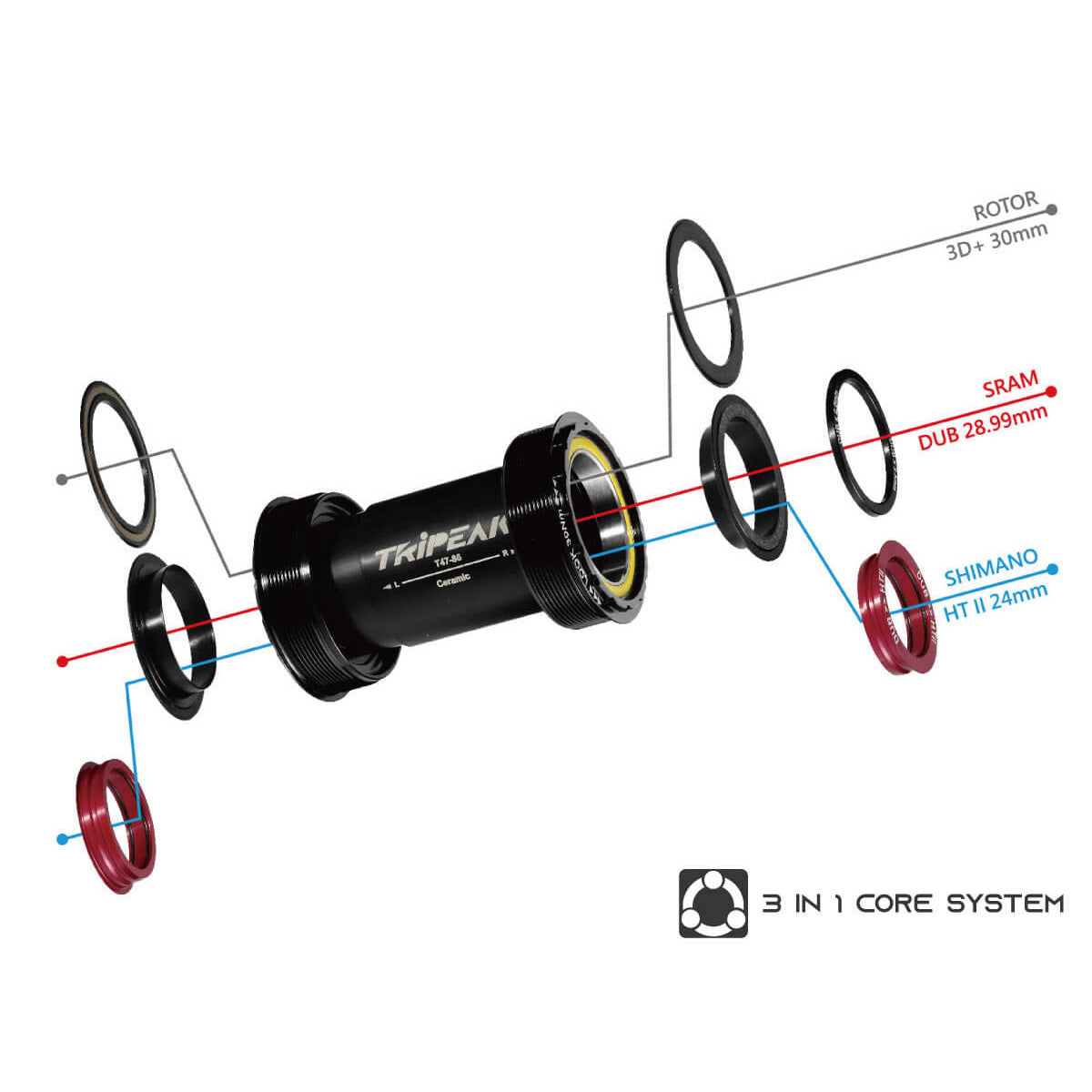

The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.

SPECIFICATIONS

BB386 86.5mm PRESS-FIT: 3-in-1

Type: Road Bike

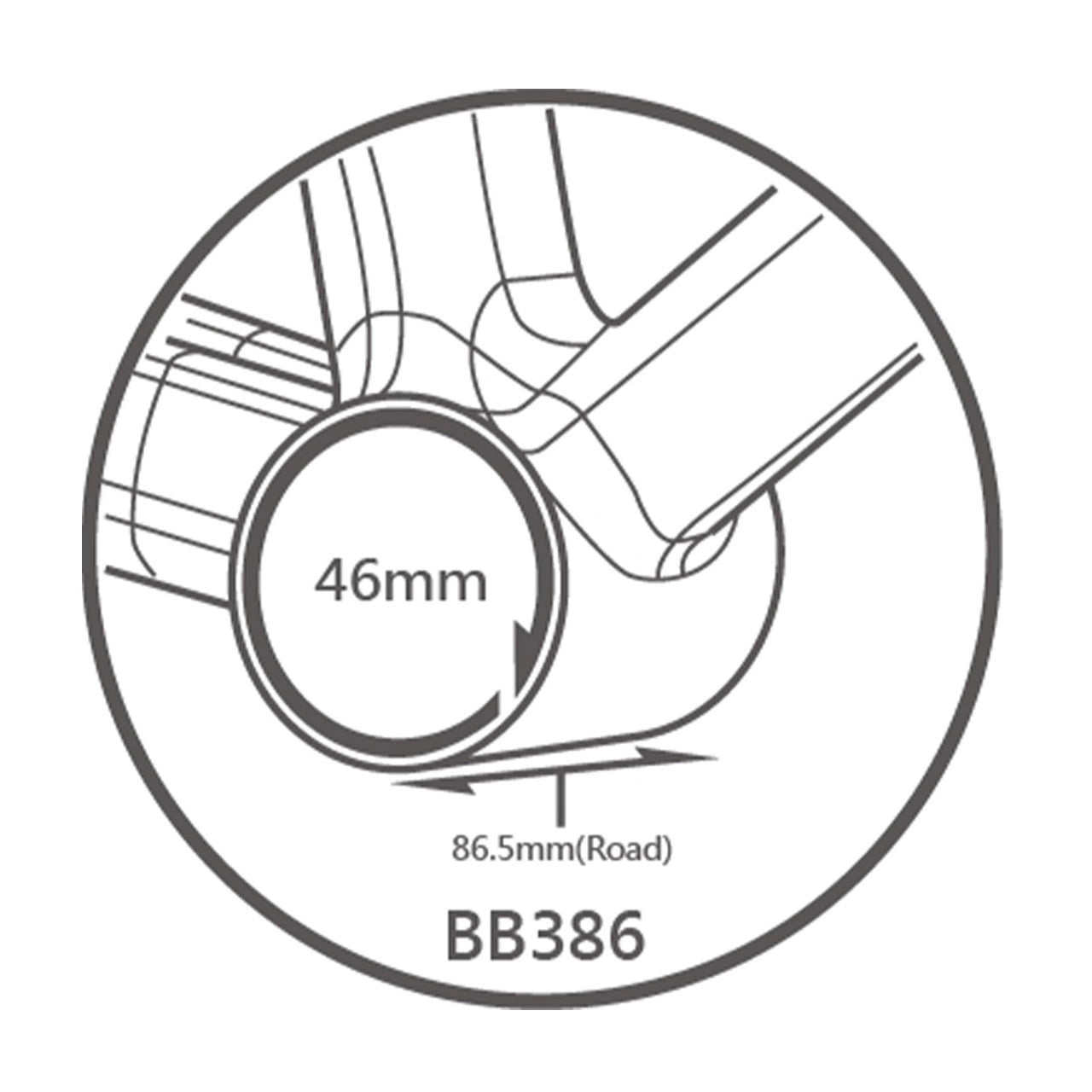

Frame Spec: BB386 DIA.46mm x Width 86.5mm

Crank Spec: SHIMANO HTII (dia.24mm)/ SRAM DUB (dia.28.99mm)/ ROTOR 3D+ (dia.30mm)

Bearing: G5 Ceramic Bearing/ P05 Steel Bearing

Material: Cup : PA+GF composite material/ Sleeve : PA+GF composite material

Accessories: 30mm Cap*2/ 28.99mm Cap*2/ 28.99mm Spacer*1 (Drive Side)/ 24mm Cap*2

Weight: G5 : 76g/set (w/o cap)/ P05 : 79g/set (w/o cap)
