ELITEWHEELS Drive 40D Disc Brake Carbon Wheelset

The Drive 40D is dedicated to those who want an all-rounder that is more geared towards riding in the hills and mountains. The wheelset features carbon spokes, light and stiff UNI carbon fiber as well as high precision, ceramic bearing hubs. It is tubeless ready and has the added benefit of having a 21mm internal rim width. The Drive 40D is for those who want a pro-level wheelset. It comes in at only 1260g for the pair.

– Carbon Spoke Wheelset
– Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default

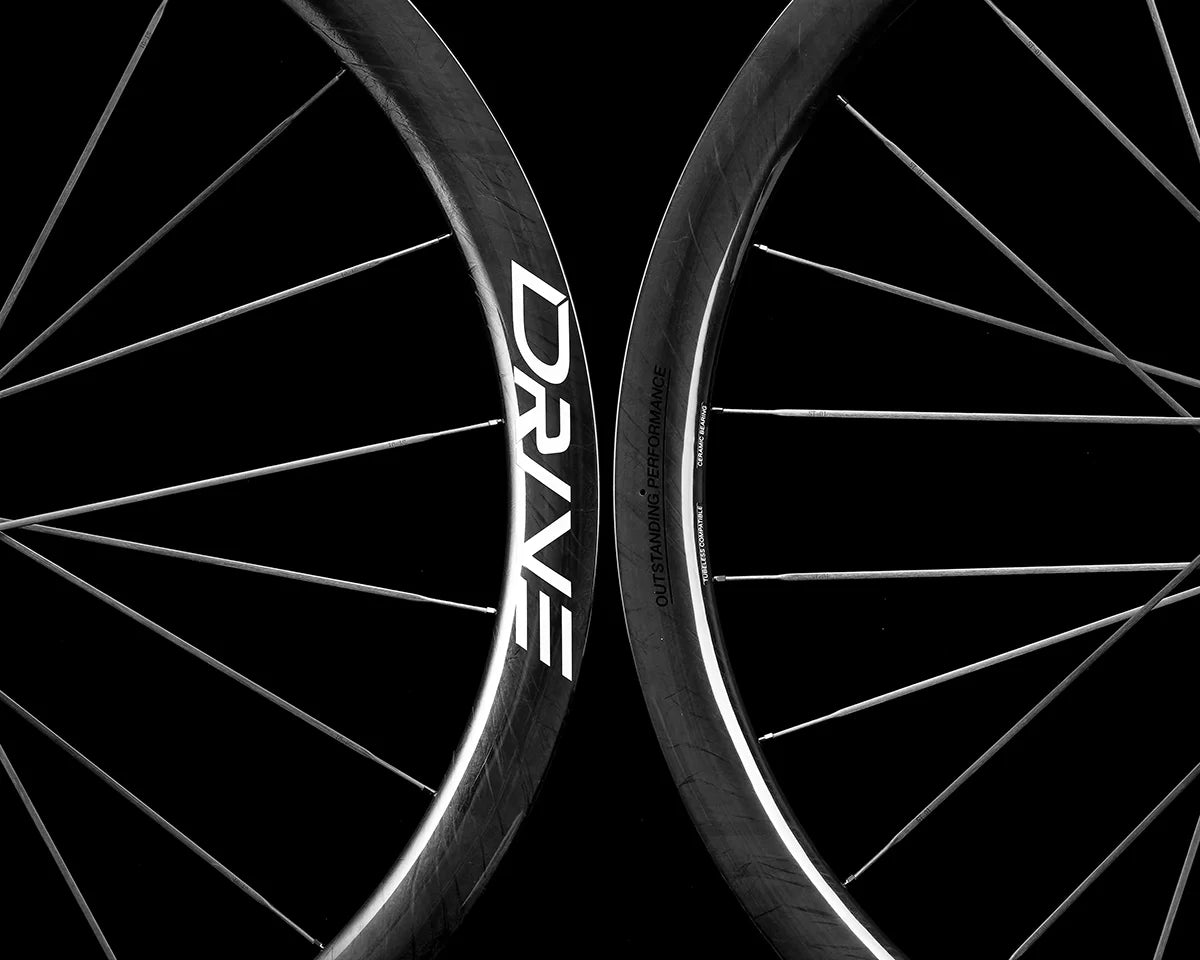

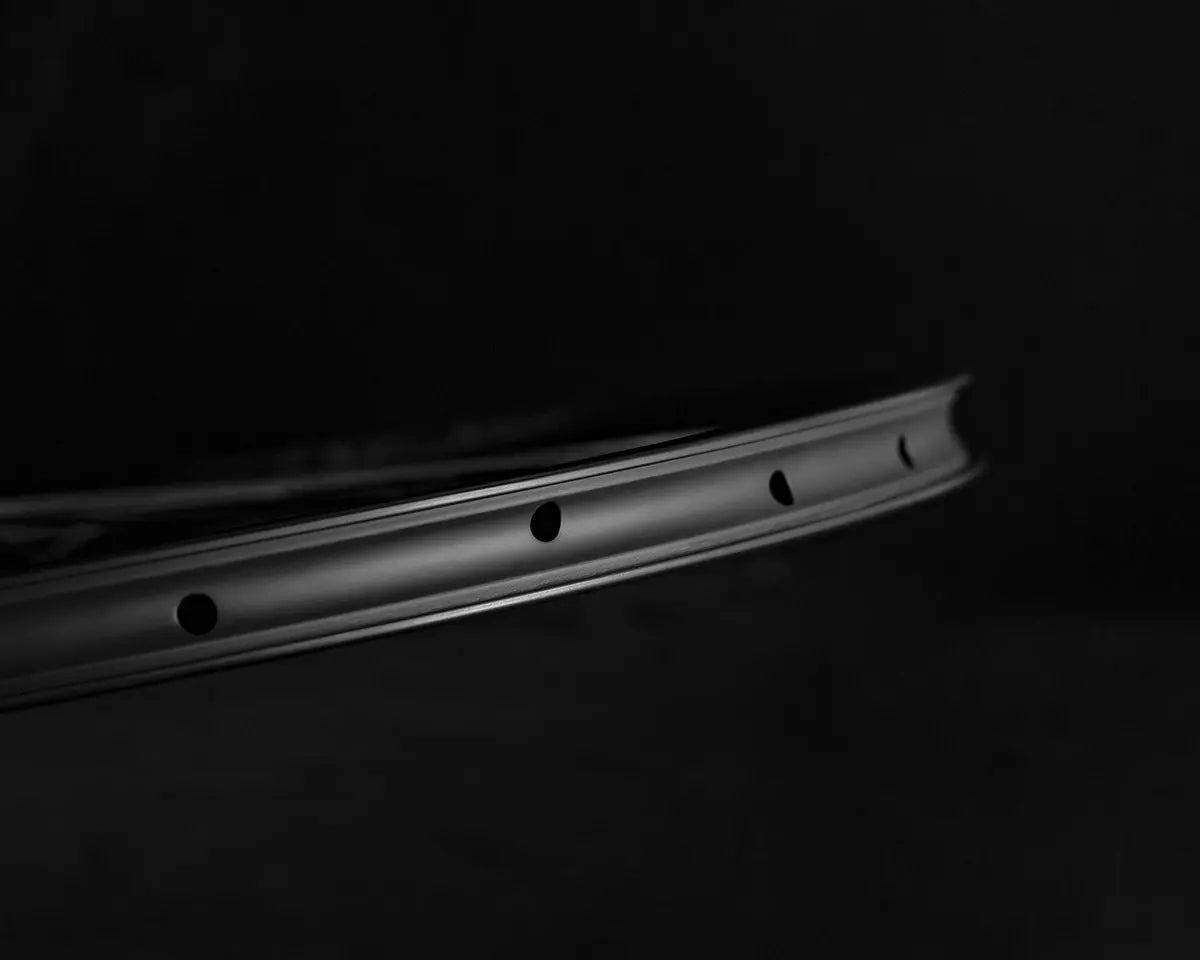

DRIVE RIMS

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber (*Read more about UNI technology), making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 40D was chosen to make the rim both aero as well as stable in windy conditions. The Drive 40D’s 21mm inner rim allows for wider tires to be run, allowing for more comfort and grip.

CARBON SPOKES

What separates the Drive 40D from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

Read more about CARBON SPOKES.

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

CERAMIC BEARINGS

The 40D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

Read more about ceramic bearings.
