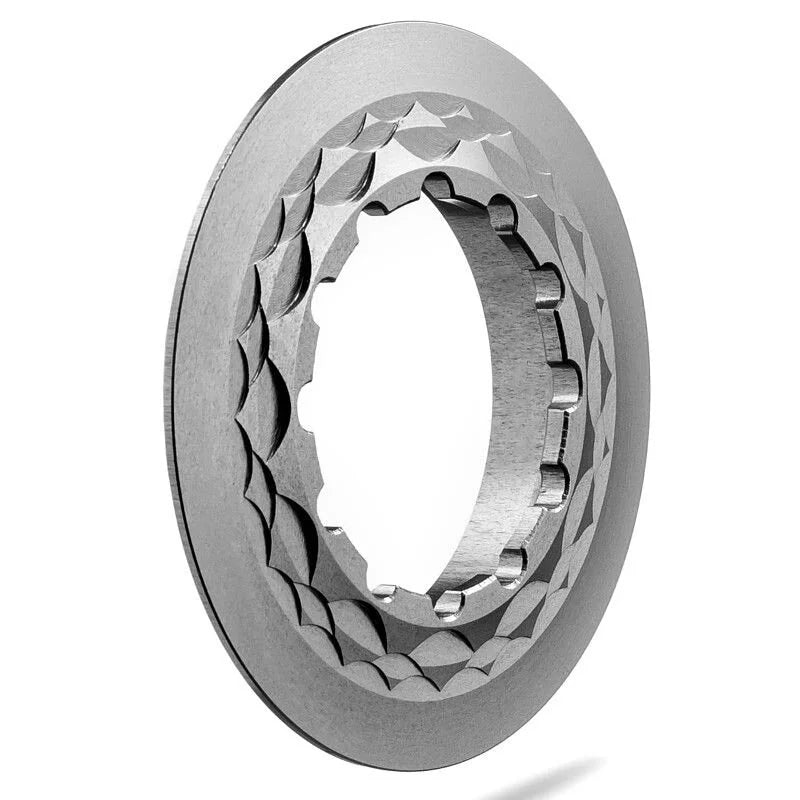

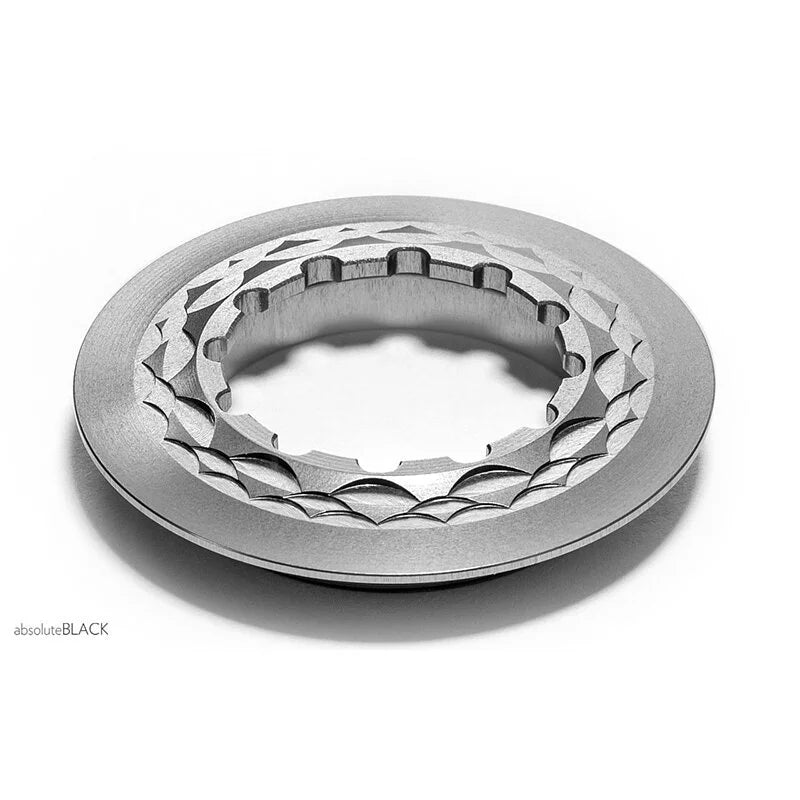

AbsoluteBlack Ultimate Centerlock Lockring

The Ultimate Centerlock Lockring is here.It's specifically designed for Road / Gravel / CX bike disc rotors fitting 12mmthru axle and QR. Ultralight design saving you over 40% weight versus stocklockring. One of a kind look. "The Ultimate" series is only availablehere on our website.

Size (Mass +/-1g): 5.8g

Compatibility: all centerlock hubs with12mm Thru axle and QR axle

Material: cnc machined 7075 Txxx Aluminum.

Finish: anodized

Outer diameter: 41.2mm

IMPORTANT

Use with Centerlock rotors only. Notcompatible with centerlock adapters due to smaller diameter of the ring. Notcompatible with QR15 / 20mm thru axle

HOW TO MOUNT CENTERLOCK LOCKRING:

Place centerlock disc rotor on thecenterlock splines on the hub. Apply a drop or two of medium strength Loctite(for eg 243) on the threads of the lockring and close the lockring with Max35Nm. To do this you will need regular cassette tool. Do not over tighten overthis value. Loctite is necessary because the lockring doesn't have knurled backside.

Designed in UK. Manufactured in Poland(EU).
