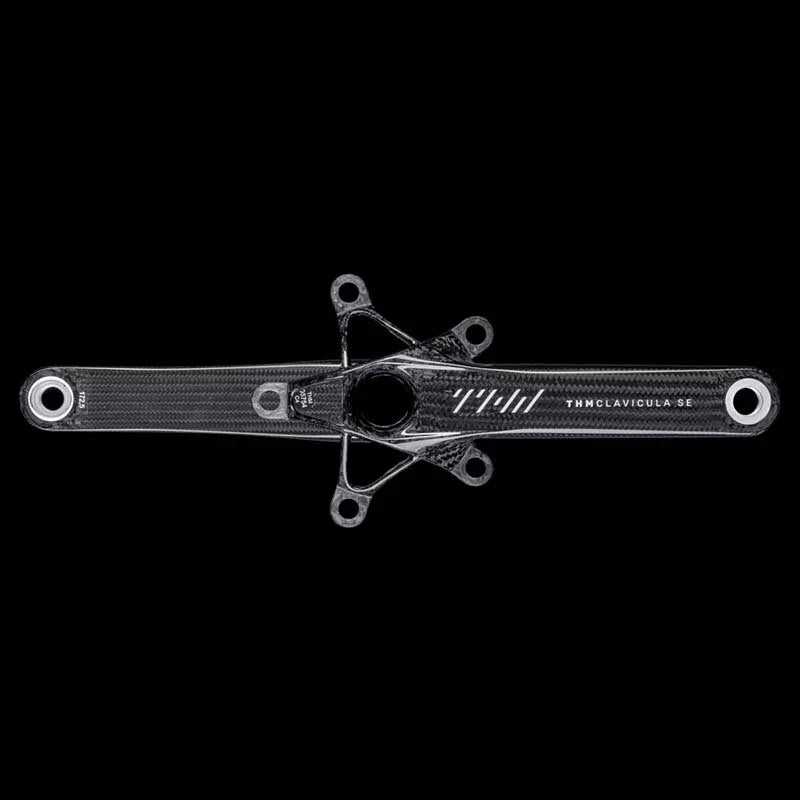

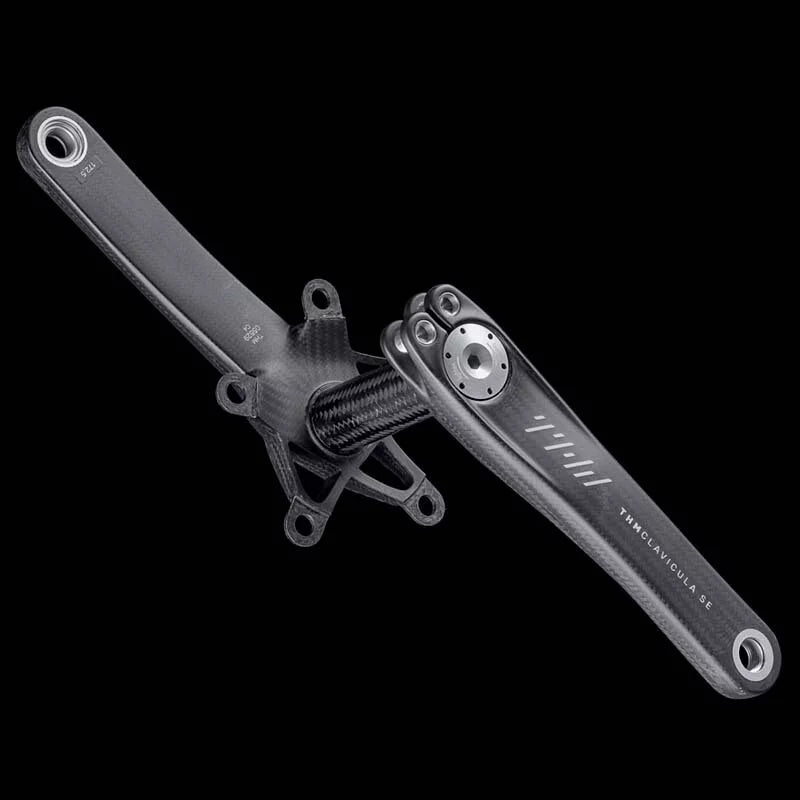

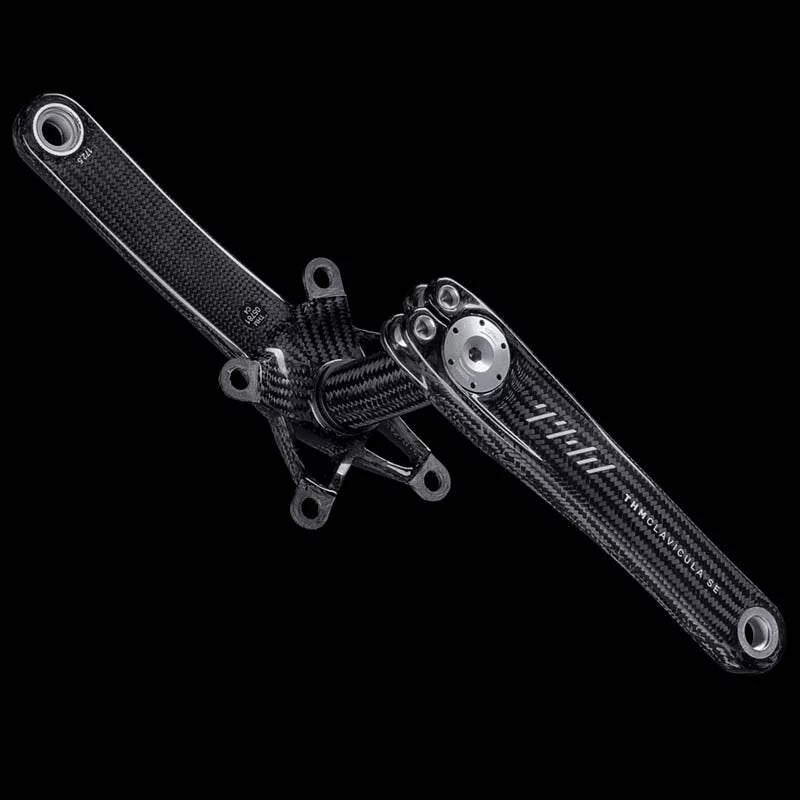

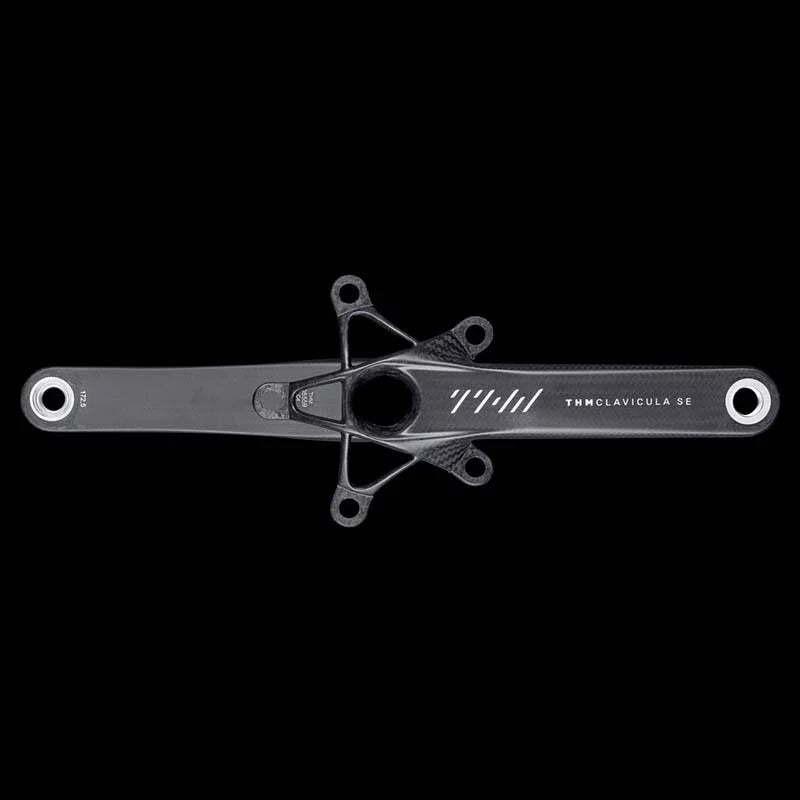

THM Clavicula SE Crankarm with PowerMeter

Clavicula sine exceptione — No rule withoutexception! Our top-line, full-carbon crank with integrated carbon axle isengineered like no other. In development we focused on optimizing itsgeometrical and structural definition, based on a precise analysis of loadpaths.

As a result, it is extraordinarily stiff inall planes, exactly what’s required for loss-free power transmission. We areparticularly proud of the patented connection between left-hand crank and axle— THM is the first to successfully productionize a carbon-to-carbon interfaceat the heart of the bicycle drive train.

Aligning the fibers of the external andinternal splines reduces wear to near zero and eliminates noise. And, ofcourse, it’s lighter, 293 g with spider. Clavicula SE beats all our own benchmarksand is the new reference in crank design.

THM CLAVICULA SE POWERMETER

Clavicula sine exceptione — No rule withoutexception!

Our top-line, full-carbon crank is thebenchmark for lightweight crank sets for years. With adding strain gauges and asmall light electronic module in the axle, powered by a lightweightrechargeable li-ion battery, we achieved to keep the additional weight for thepowermeter feature for our Clavicula SE under 27 g. Furthermore you are free toride your desired lightweight pedals.

In total this leads with only 320 g forcompact and 329 g for standard to the lightest powermeter on the market.

TECHNICAL INFO

Weight: about302 g (0.67 lb) for cranksystem Standard and about 293 g (0.65 lb) forcranksystem Compact

Mounting: fitsany frame with standard 68 mm BSA shell. Available for BB30, BB30A, Pressfit30,Shimano Pressfit, Italian threading, BB386 EVO, BBright™-Pressfit

BBright™ Direct Fit (only Cervelo frameR5ca) also available BB 386 (only AX Lightness frame ViAL EVO) also available

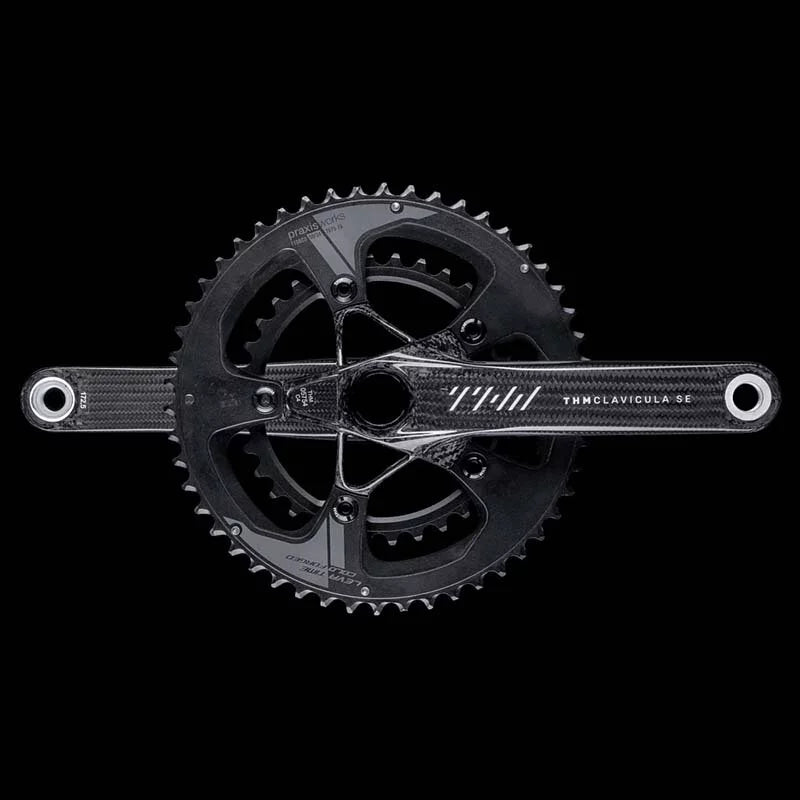

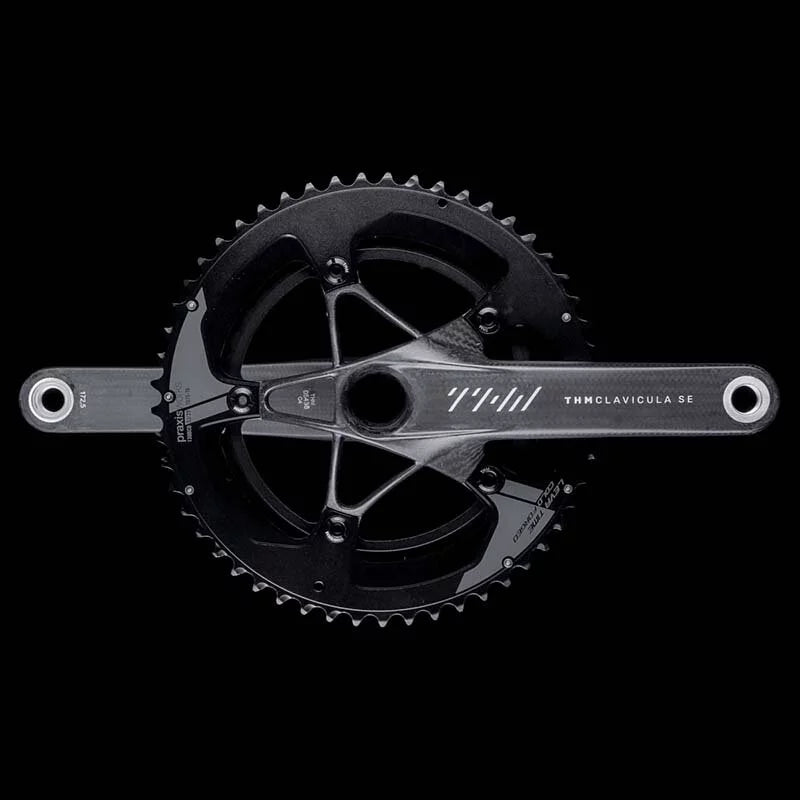

Chainrings: THM-Carbonesrecommend Praxis Works (not included)

Q-Factor: 148mm

Chainline: 43,5mm

Inner width of the cranks: 118 mm

Available lengths: 170, 172,5 or 175 mm

Max. permissible total weight(rider+bicycle+luggage):110 kg (243 lb)

THM CLAVICULA SE POWERMETER

Crankset: CLAVICULASE Compact or Standard

Weight (±5%): 320 g compact; 329 g standard (without chainrings)

Diameter axle: 30 mm

BCD: 5bolt 110 mm or 130 mm

Sensor position:      Integrated in the axle (measures leftside)

Measurement: Power, Cadence, Torque effectiveness, Pedal Smoothness (L)

Power range: 0 W – 1999 W

Accuracy: +/-2 %

Connectivity: ANT+; Bluetooth LE

Handheld :ANT+ or Bluetooth compatible bike computer or smartphone

App: Team ZWATT Power Meter

Manufacture electric module: SENSITIVUSgauge

Firmware: Firmware updates via App

Battery: Integrated Rechargeable Li-ionbattery

Runtime: 150 h

Waterproofing: IP 67
