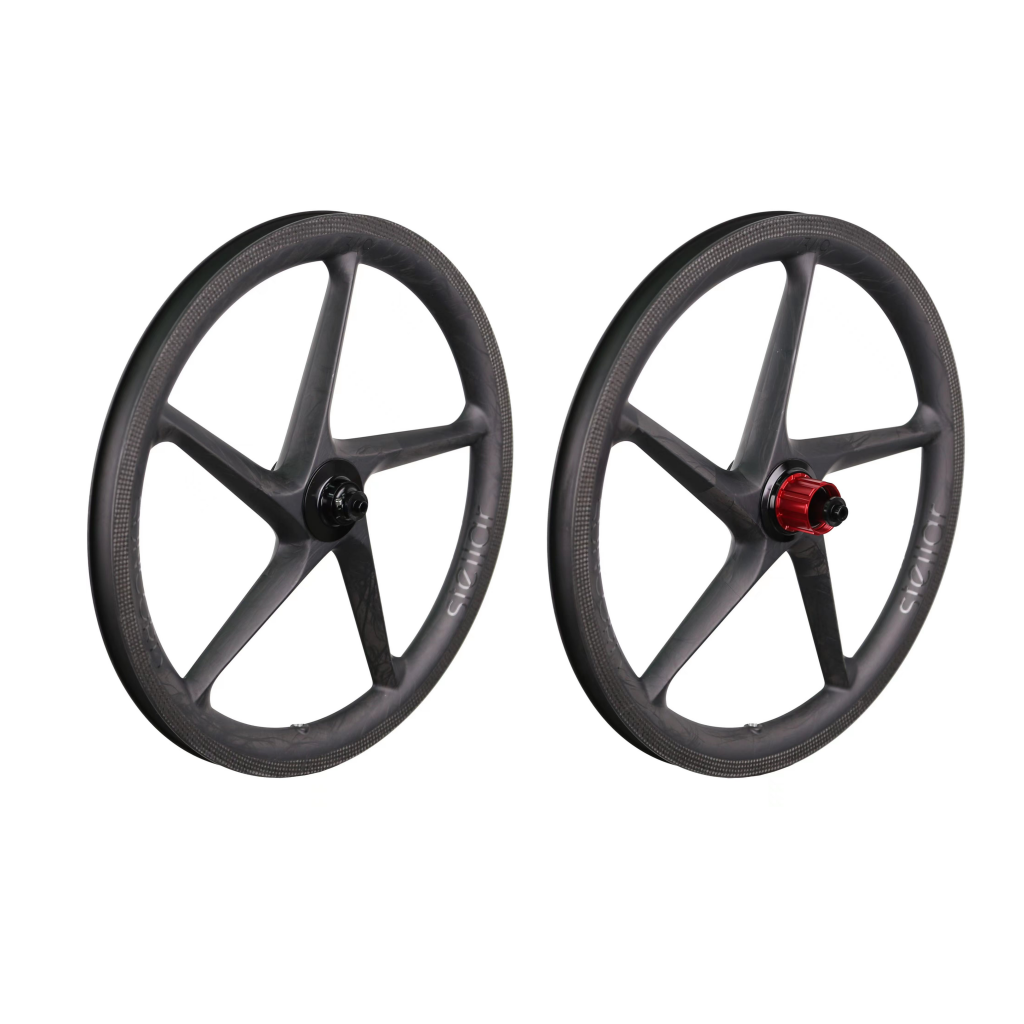

SUNCORD 349 full carbon Five-Spoke wheel for Brompton
WHEEL SIZE : 349
APPLICABLE VEHICLES：A/C/P/T Line
EXTERNAL LAYER : UD carbon
RIM DEPTH : 30mm
INNER WIDTH : 18mm
OUTER WIDTH : 24mm

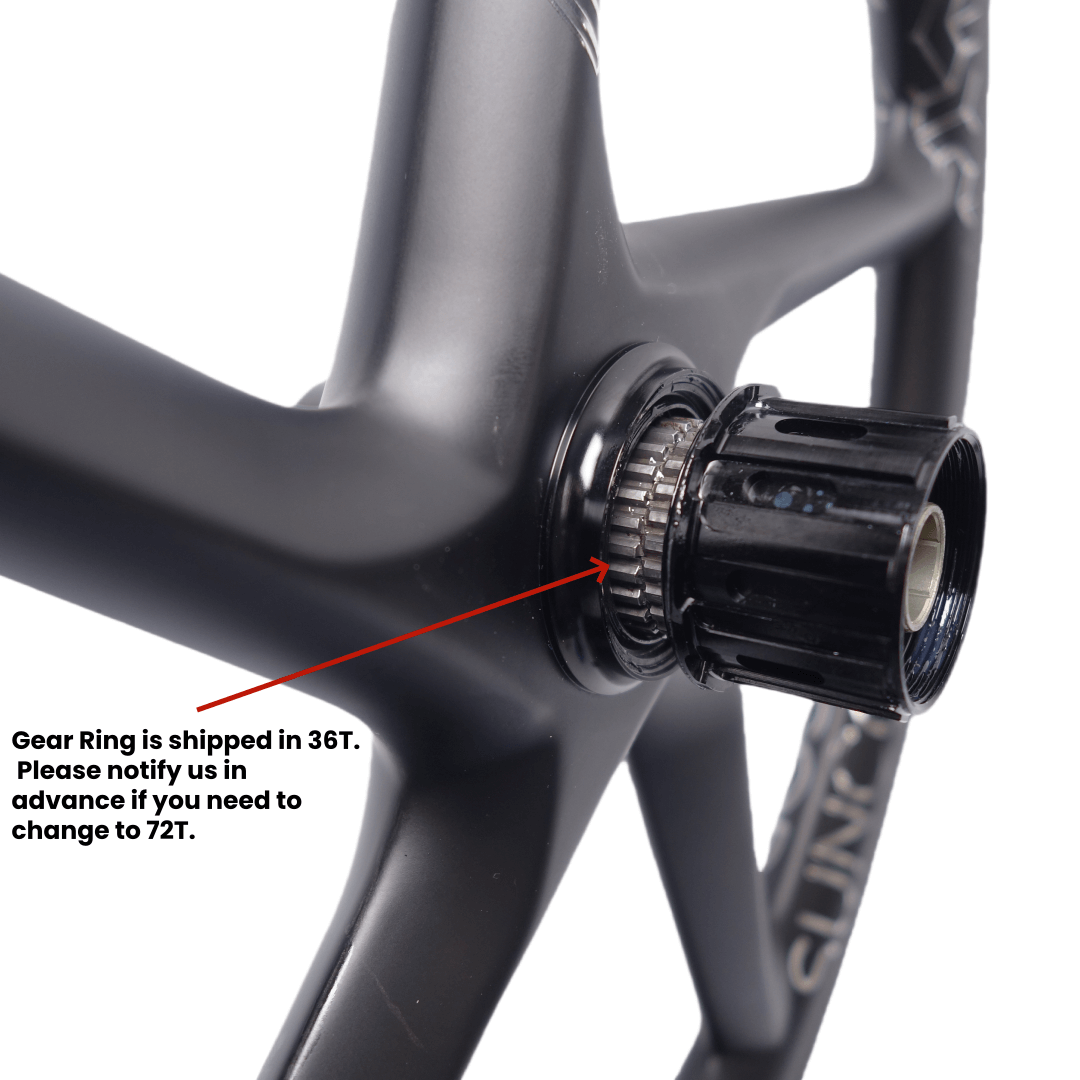

HUBS : F:74MM/R:112MM. 7 speed (5-2 speed needs to add spacers by yourself) Gear Ring is shipped in 36T. Please notify us in advance if you need to change to 72T.
VALVE：French valve

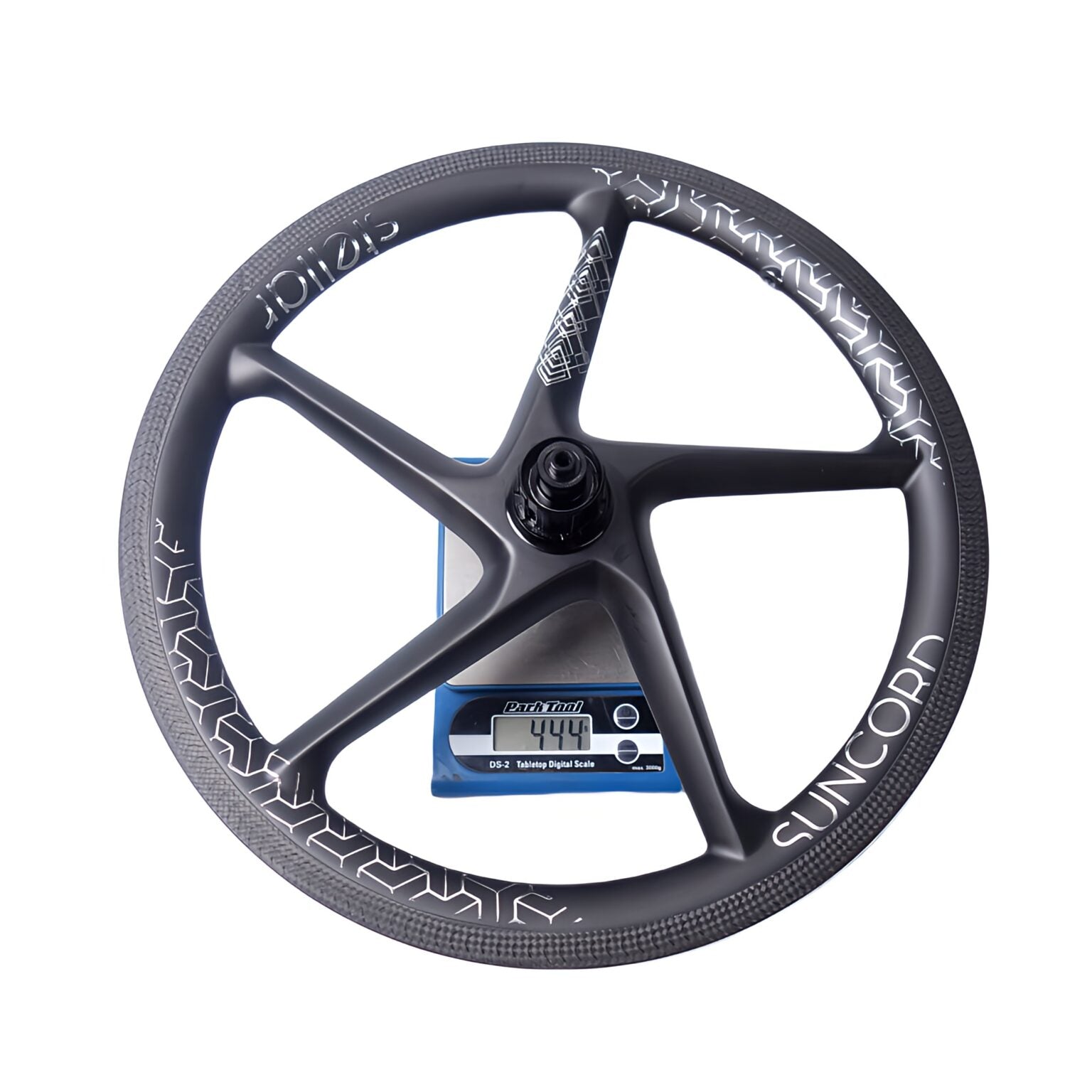

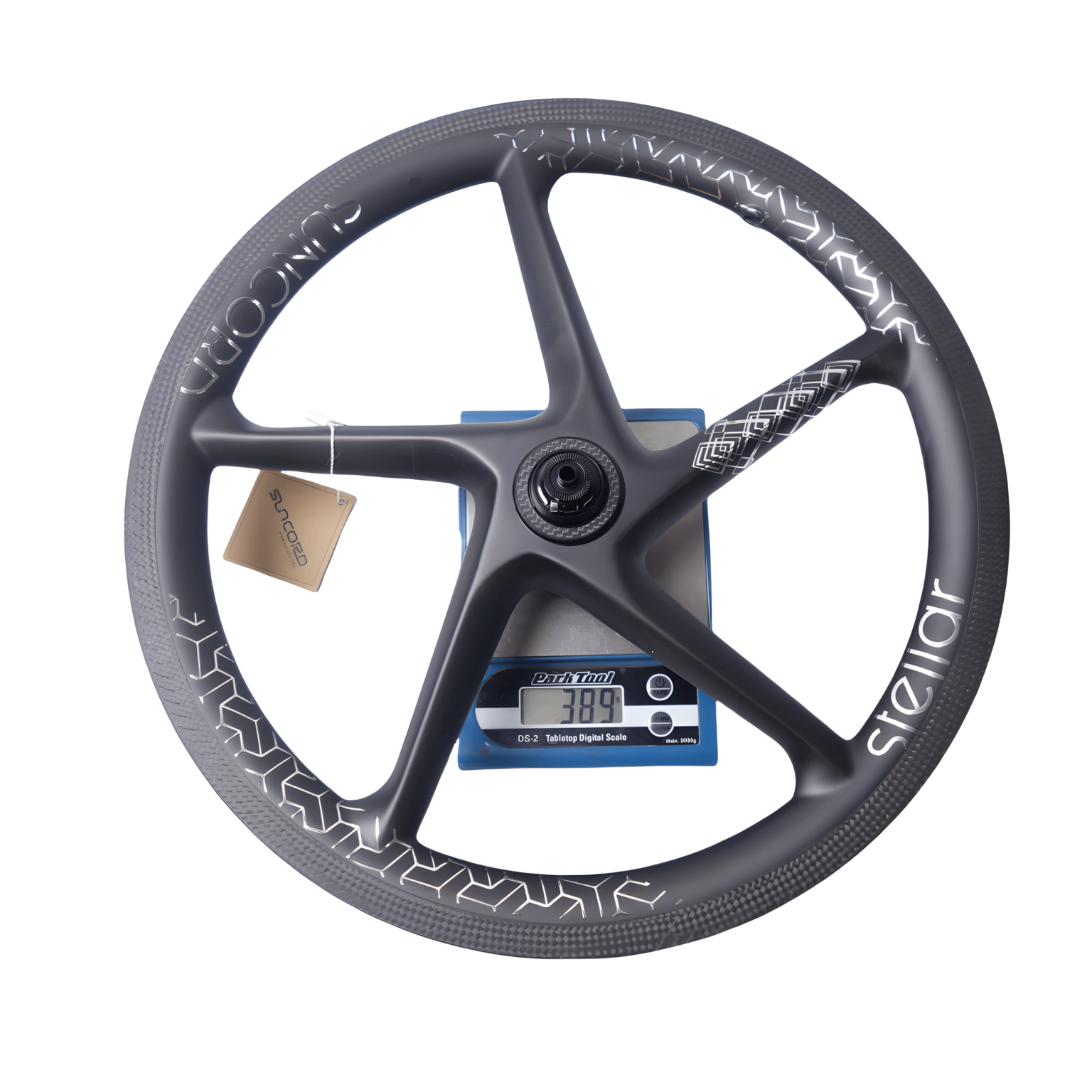

WEIGHT : UD carbon:835g(F)±15g / (R)±15g
MAX RIDER WEIGHT : 105KG
COLOR : Black | Black/Red | Black/Turquoise Green | Black/Pink | Gloss black | Electroplated Silver or Customized Colors
Newly Upgraded Planetary Hub Structure
Thorn Gear Ring: 36T/72T thorn gear ring manufactured entirely through precision machining to ensure accuracy.

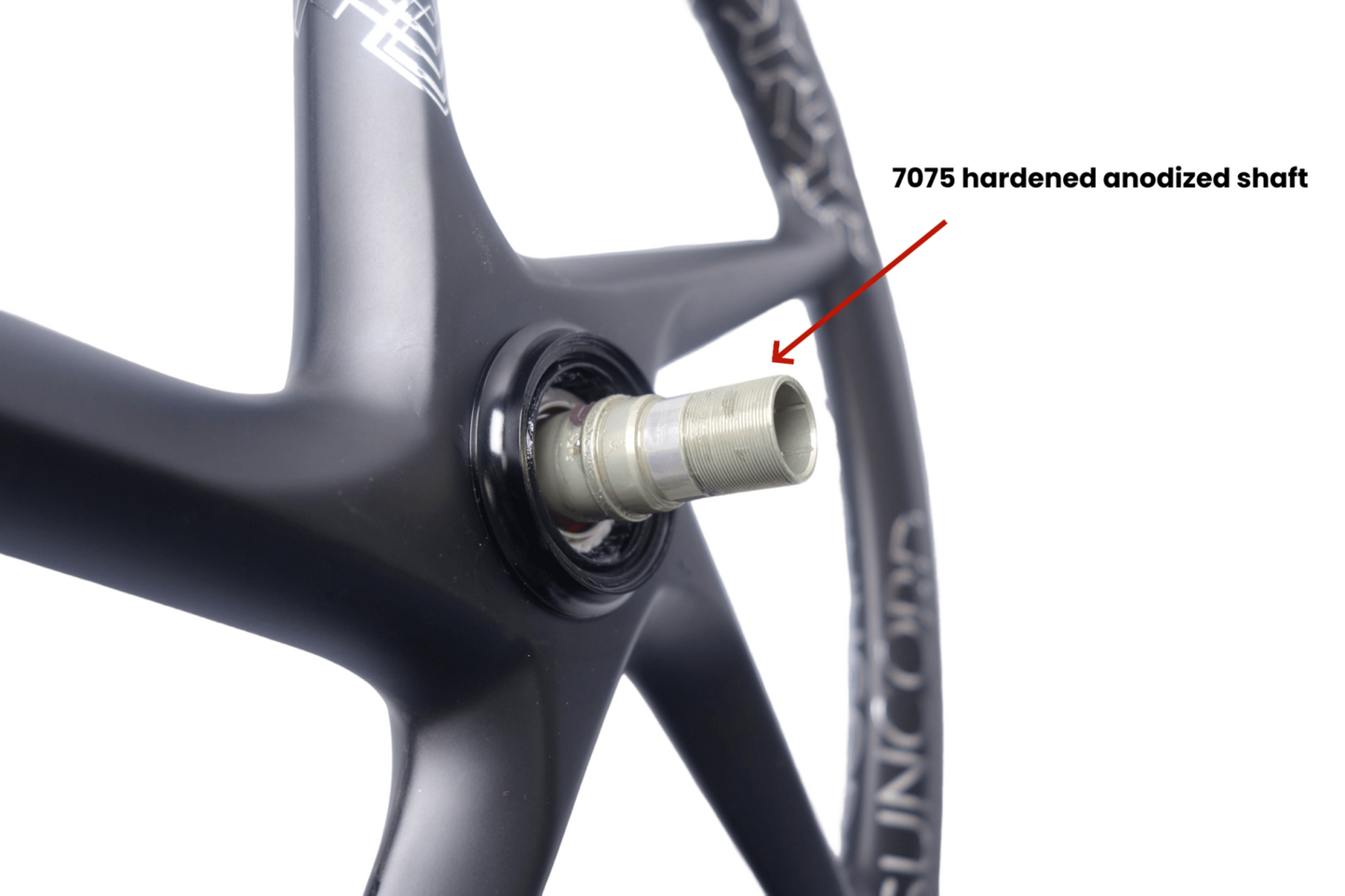

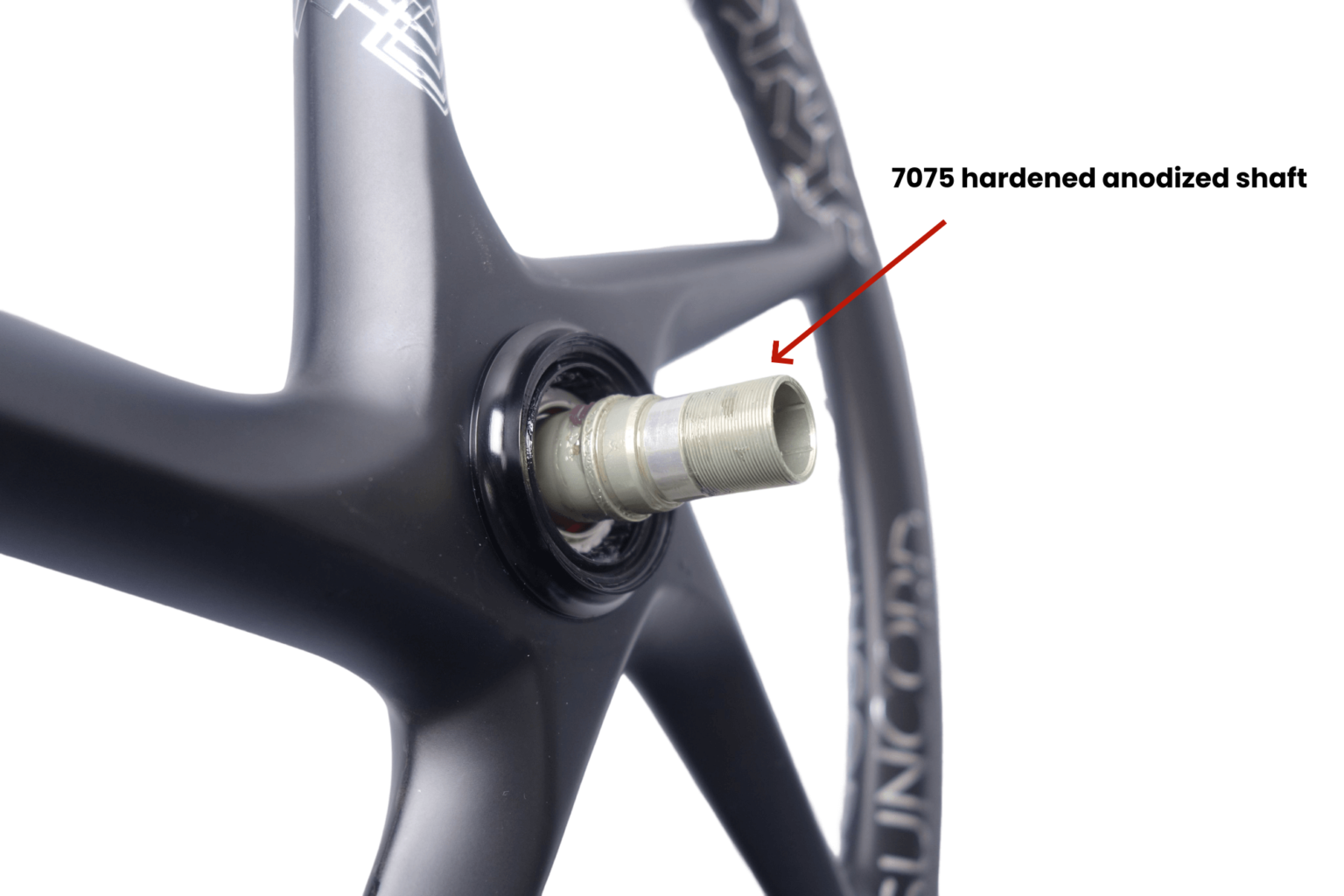

Hub Axle: Features a stepped design with hardened anodized treatment for added durability.

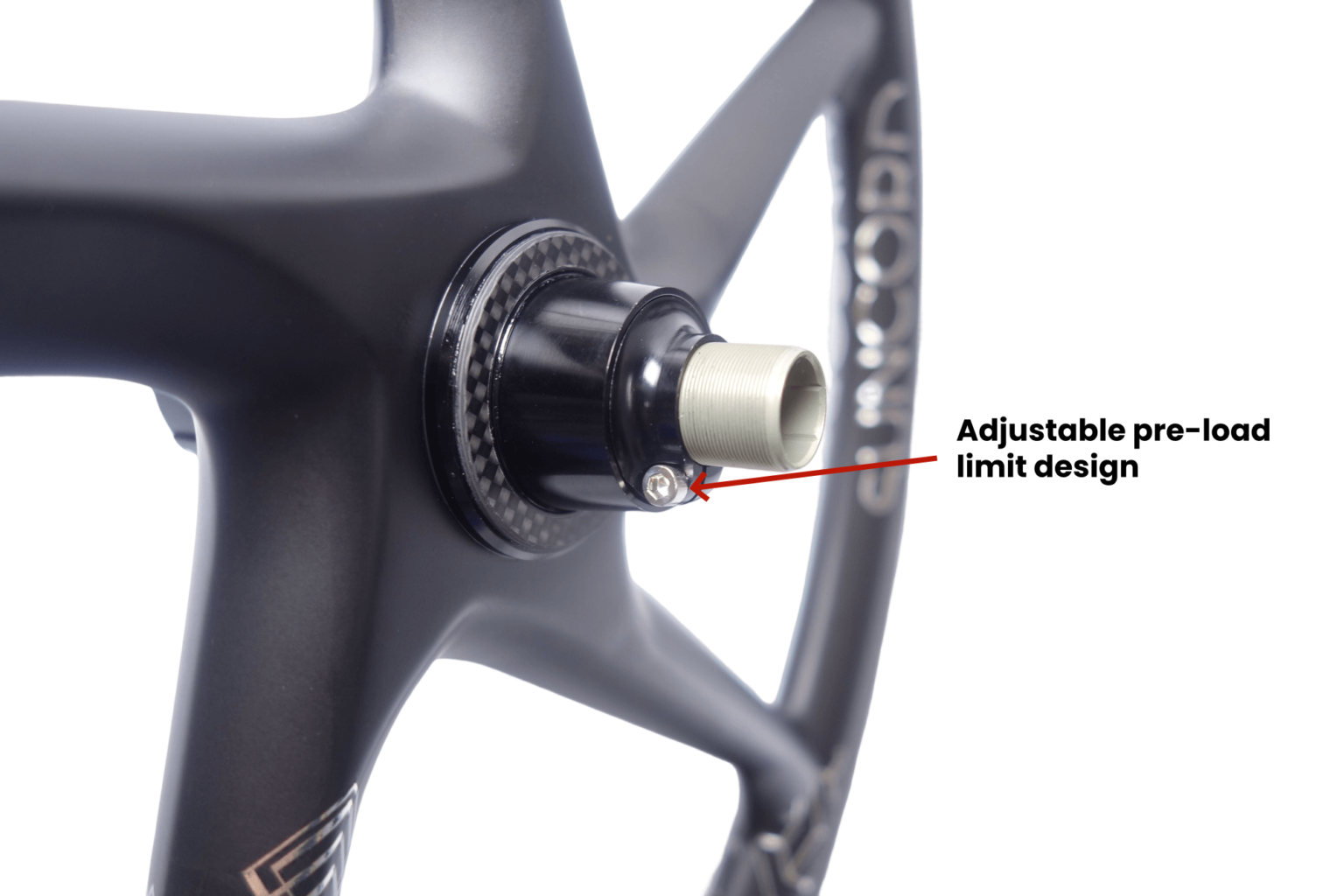

Preload Limiter Design: Allows for smoothness adjustment of the hub for optimal performance.
No Back Hole Design: Eliminates the need for rim tape, providing a cleaner setup.
Brake Flange with Drainage Grooves: The carved drainage grooves on the brake flange enhance braking power.
Bearings: Equipped with high-quality TPI ball bearings from Taiwan.
Hub Bearings: Uses 2 TPI or TRIPEAK ceramic bearings in the front and 2 in the rear, also from Taiwan.
Hub Shell Material: Made from 7075 aluminum alloy for strength and lightweight performance.
Planetary Gear Structure: Available in 36T/72T configurations.
Actual Weight: The complete wheelset weighs in at 833 grams.
