RIDEA-Dahon Handlebars

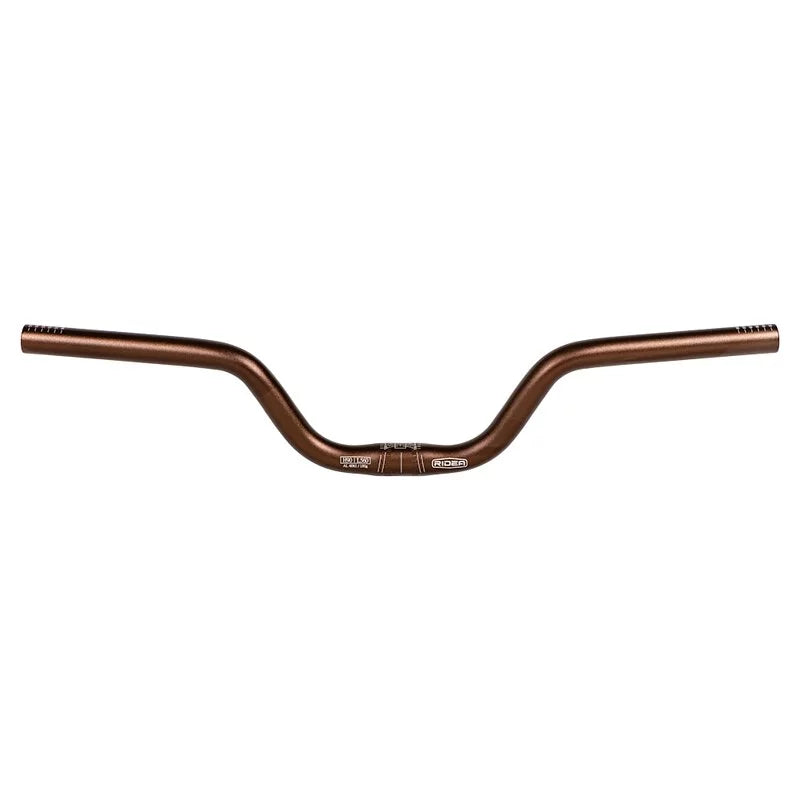

Ridea offers a wide variety of handlebars with a 25.4 mm clamping diameter (compatible with Brompton, Dahon and others) and 31.8 mm (compatible with Birdy, Moulton and others). Available in alloy and carbon fiber, there is a Ridea handlebar for each rider.

All handlebars have a length of 560 mm.

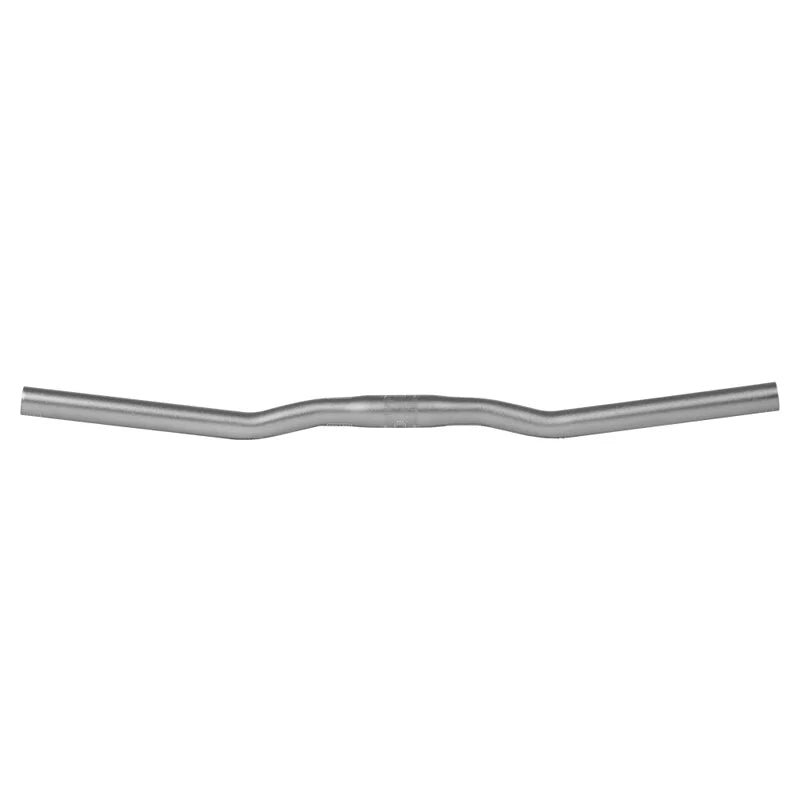

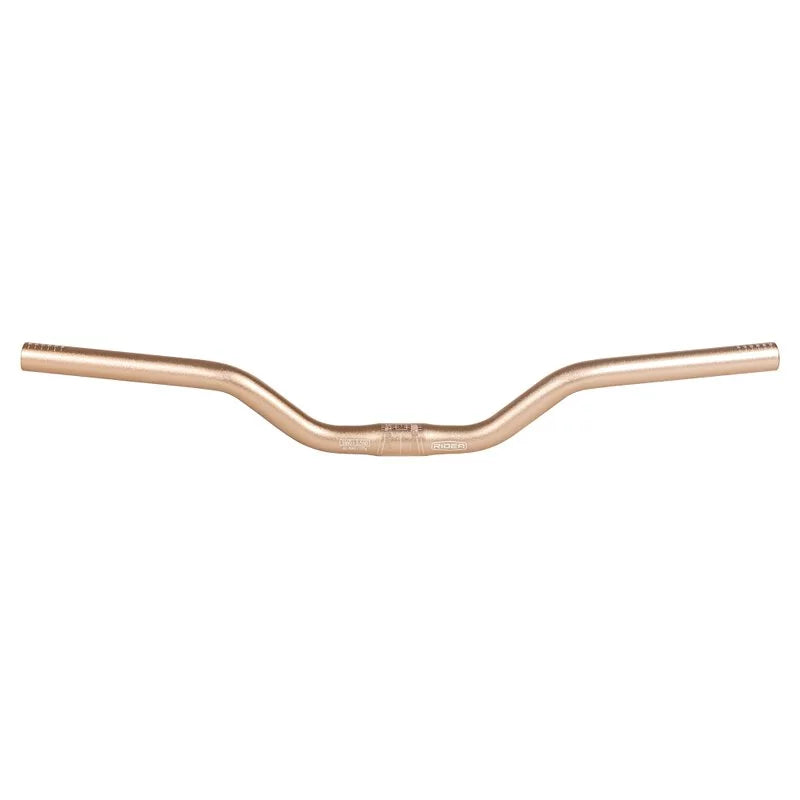

Standard colors for alloy handlebars are: Black, gold, silver, matte red, matte bronze, matte champagne.

P/N	Material	Clamp diameter	Rise	Weight
HB HP6A1	Alloy 6061	25.4 mm	See next table	155 g
HB HP6C	Carbon 12K or Forged	25.4 mm	See next table	90 g
HB HP3A1	Alloy 6061	25.4 mm	See next table	155 g
HB HP3C	Carbon 12K or Forged	25.4 mm	See next table	90 g
HB HS3	Carbon 12K or Forged	31.8 mm	See next table	99 g

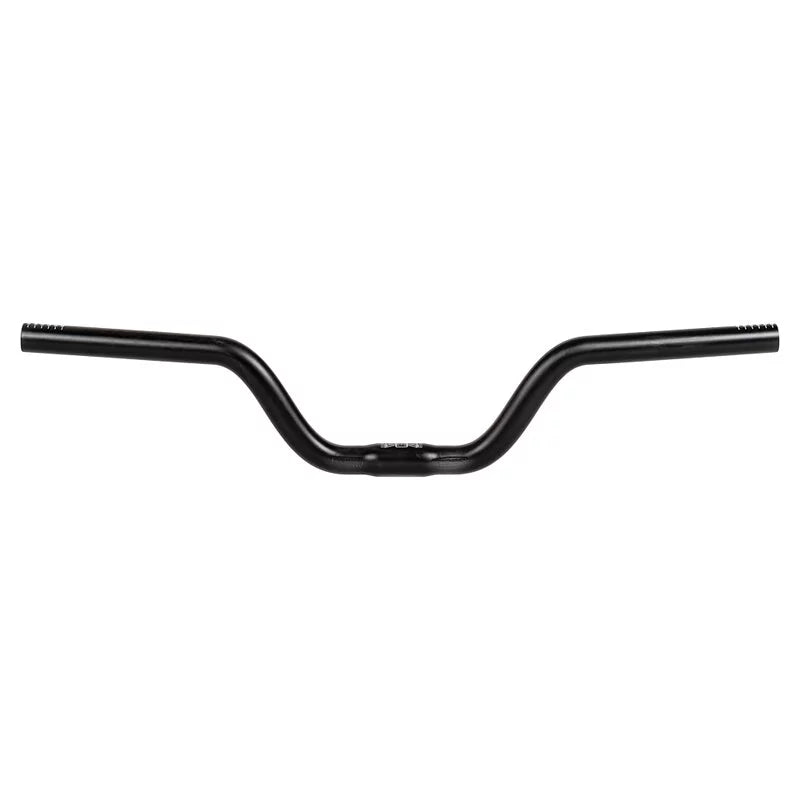

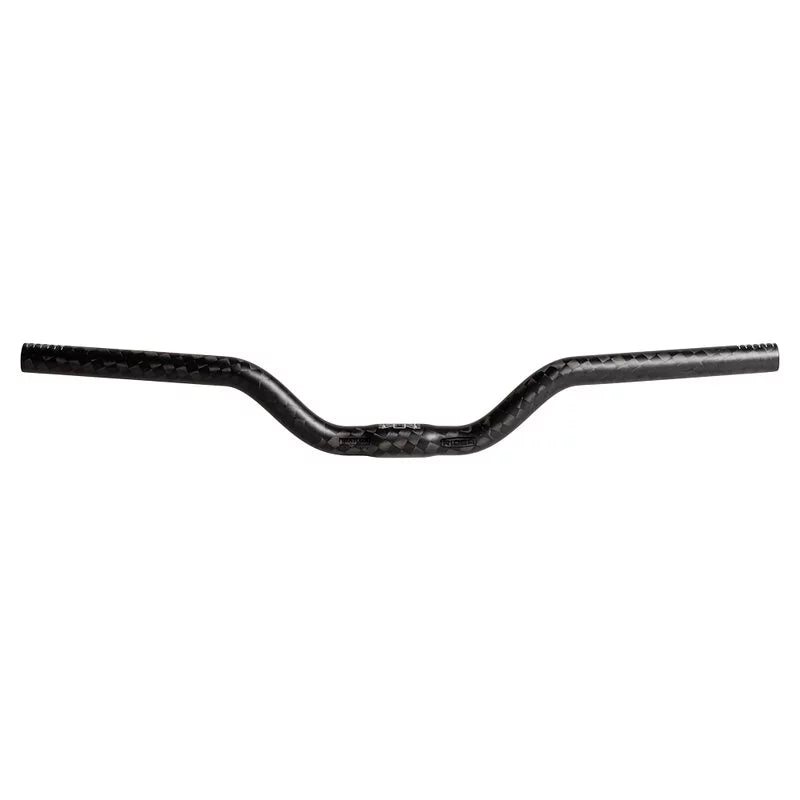

HB B60A1	Alloy 6061	25.4 mm	60 mm	175 g
HB B60C	Carbon 12K or Forged	25.4 mm	60 mm	110 g
HB B90A1	Alloy 6061	25.4 mm	90 mm	190 g
HB B90C	Carbon 12K or Forged	25.4 mm	90 mm	130 g

*More colors are available as a custom option.

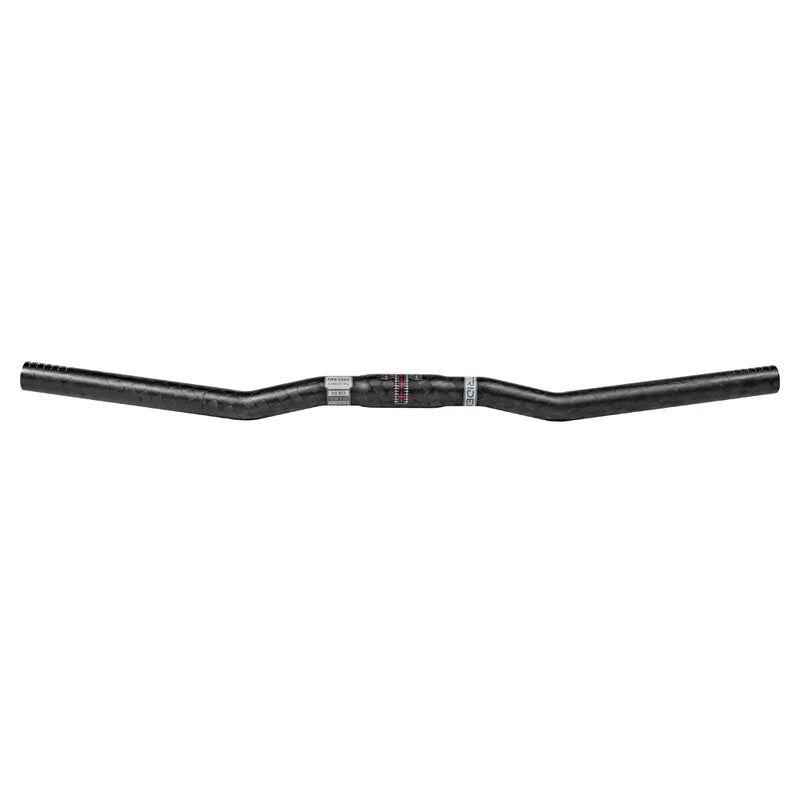

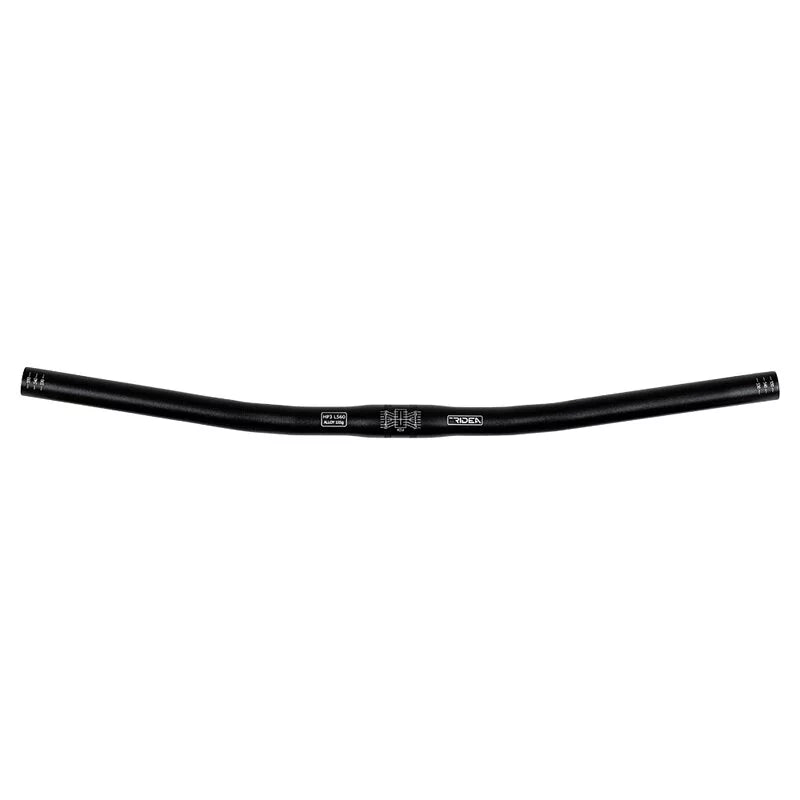

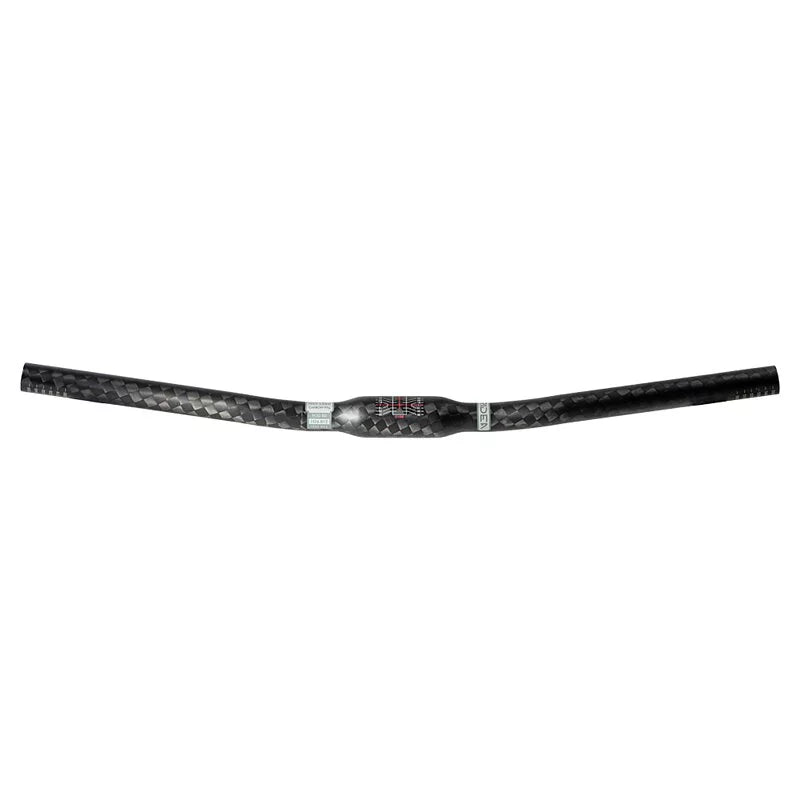

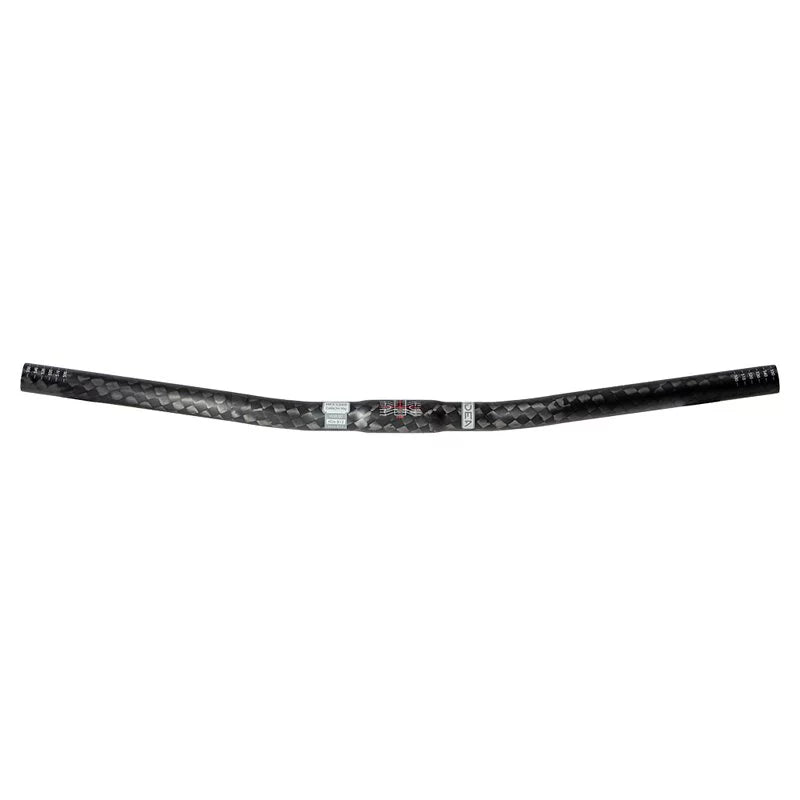

Handlebars from HP6, HP3 and HS3 series are cleverly shaped to offer a great amount of hand and body variability depending on the chosen clamping angle, being able to offer a more sportive or comfortable position within the same handlebar.

P/N	HB HP6						HB HP3			HB HS3
Height (mm)	-5	5	-10	10	-22	22	30	25	20	30	26	20
Backward (mm)	22		18		5		0	12	22	0	12	22
