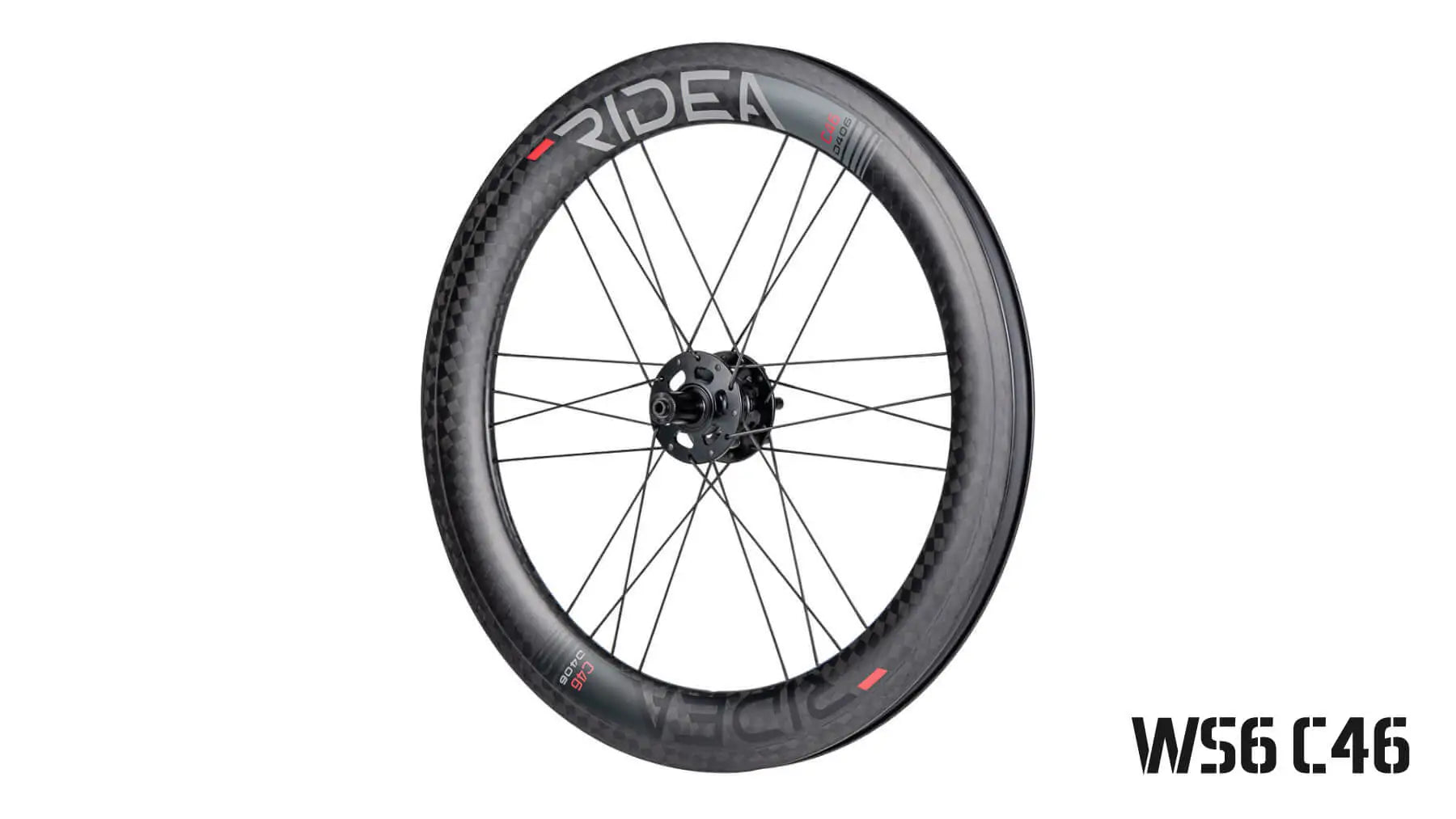

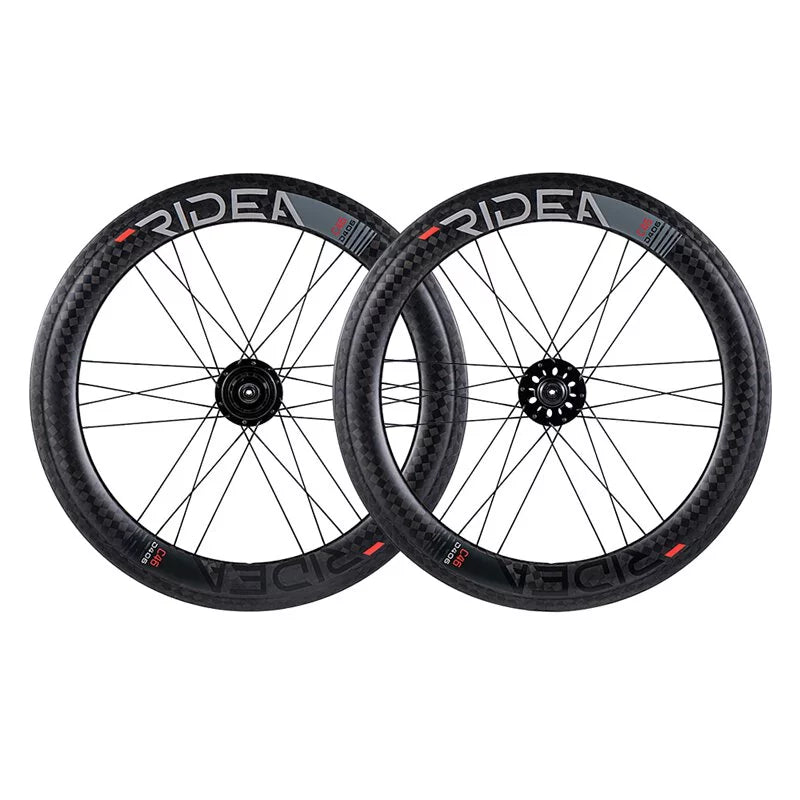

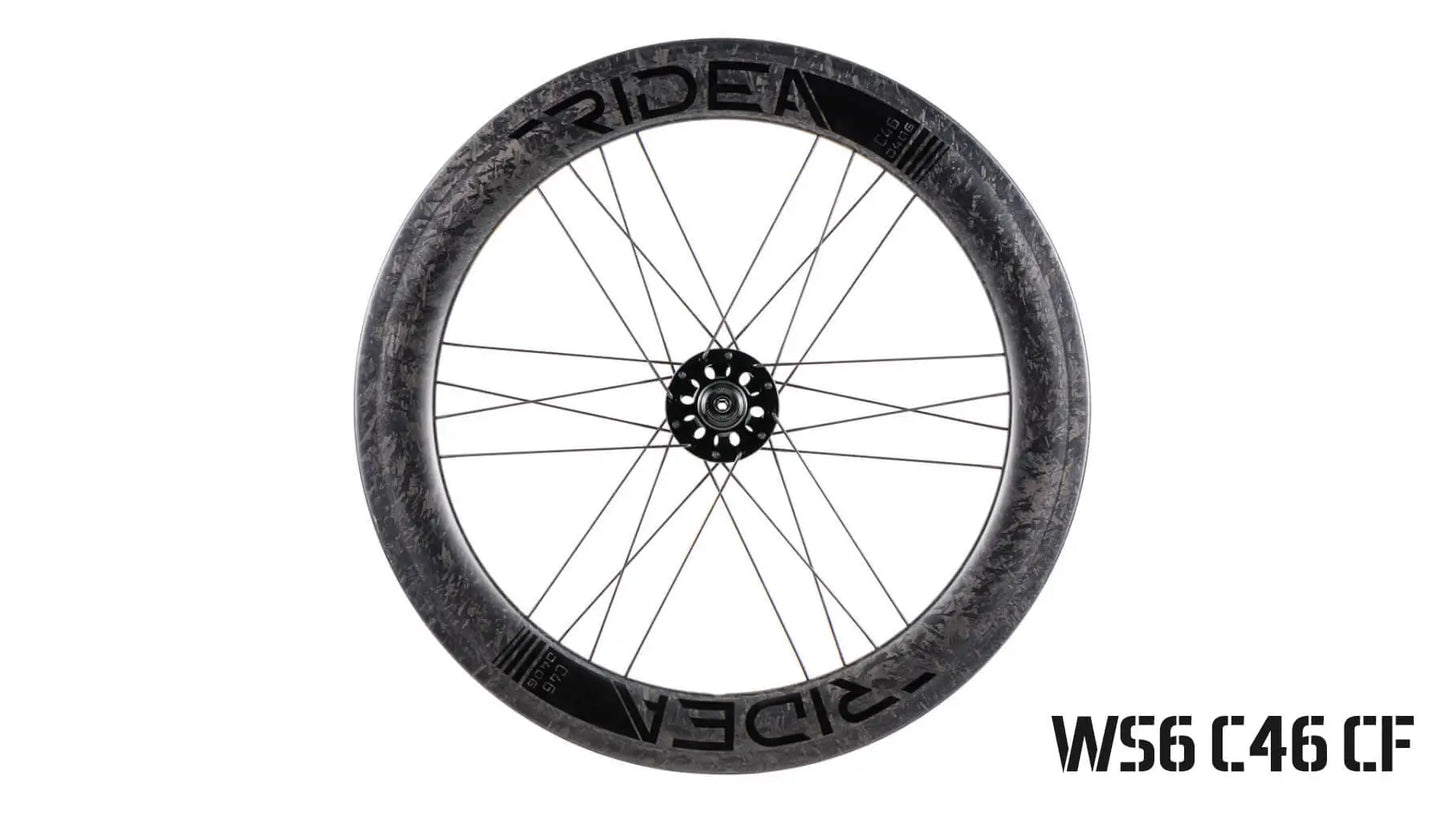

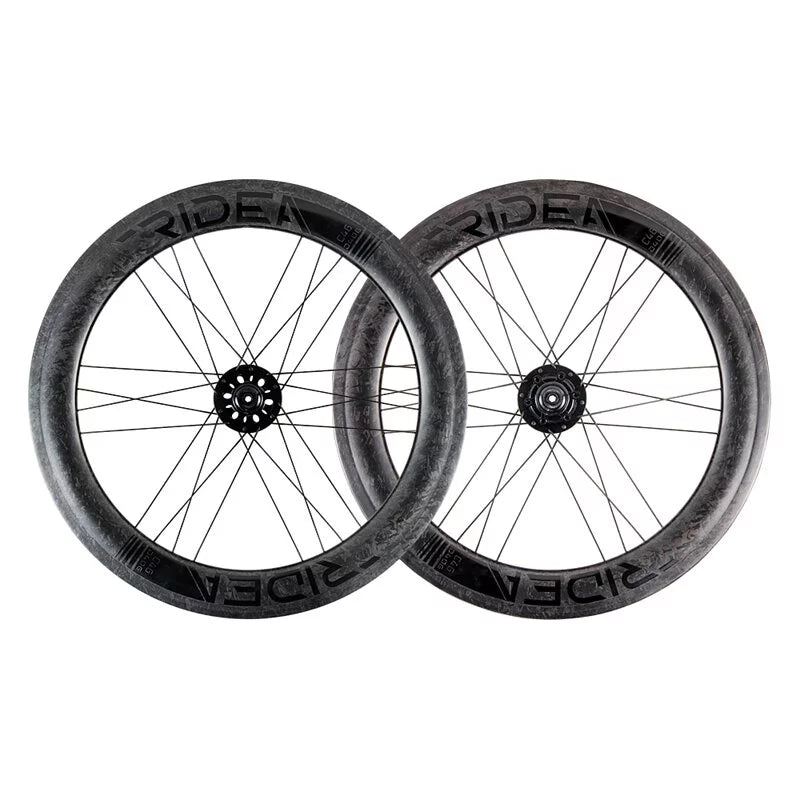

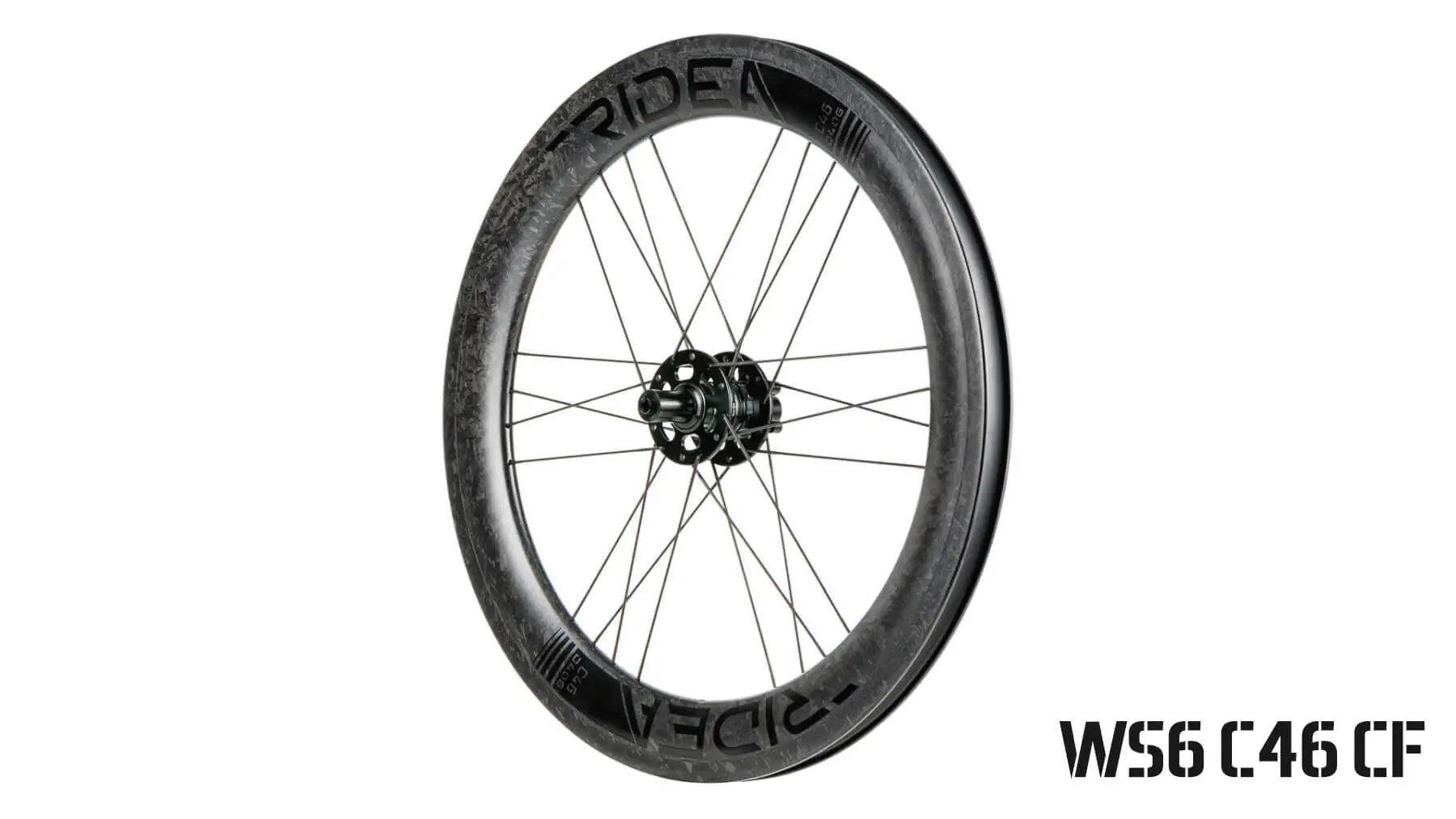

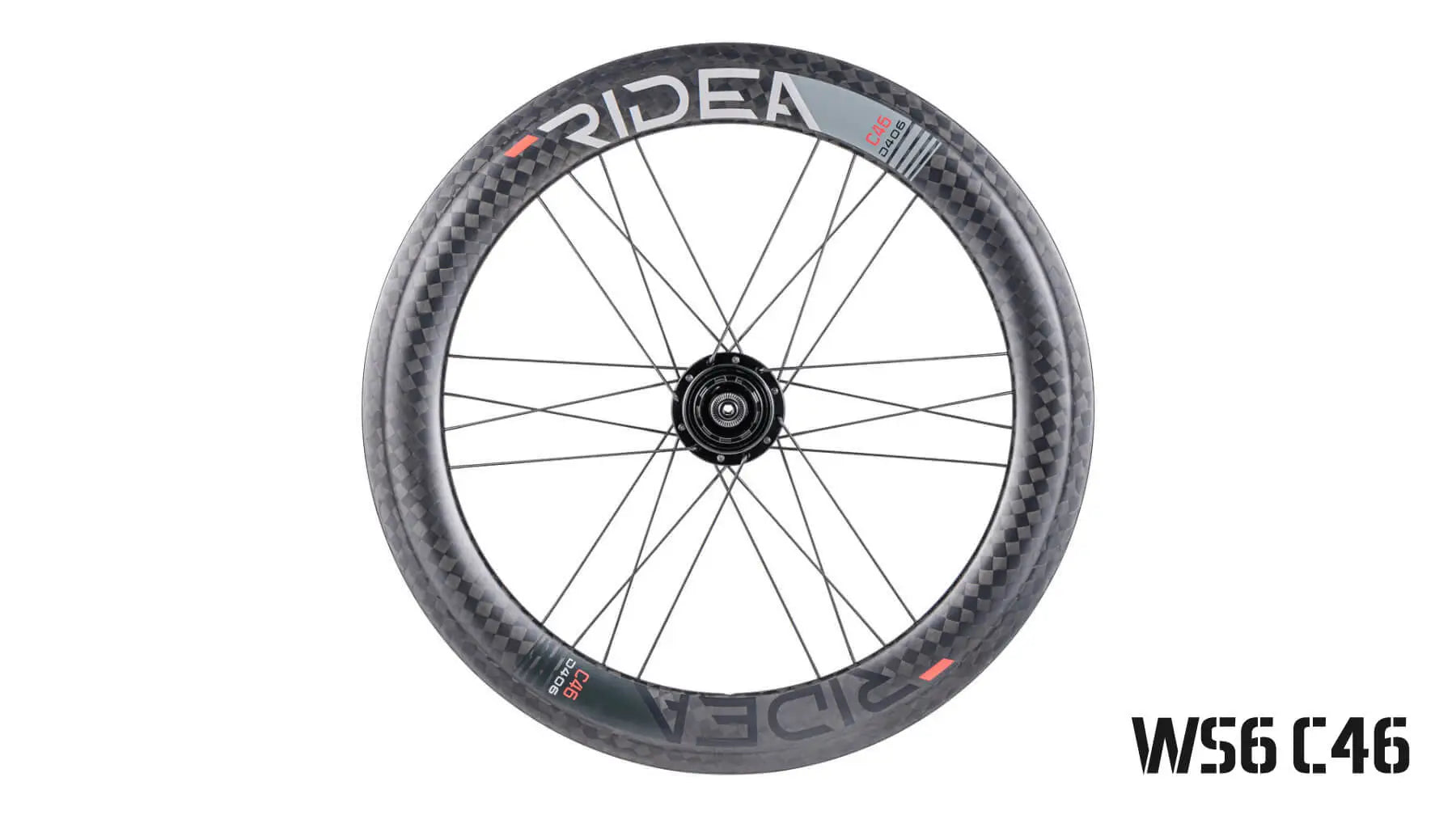

WS6 C46 is a series of wheelsets built around carbon ISO 406 mm rims. They are available with three different hubs(rim and disc brake options) and two rim finishes.
HF1 and HF2 include the G72 ratchet mechanism present in Ridea road bike hubs.
These wheelsets are built with Ridea hubs specifically designed to fit Birdy bikes, but they may be also compatible with other brands that use the same OLD and hub system used by Birdy.
P/N
Hub
Rim
Rim W/H/D (mm)
Weight (g)
WS6 C46
HF1
12K carbon
24/46/406
1225
HF2
HF2
Carbon Forged
1158
RIDEA HUBS WS6 C46 WHEELSET
P/N
Bearings
Spoke number (F/R)
Spoke insertion
O.L.D. (F/R)
Brake type
Freehub
Hub colors*
Weight
HF2
Ceramic/Steel
24H/24H
J-bend
100/135 mm
6-bolt disc
Shimano-SRAM 11sp
Black, red, gold, silver
370 g
HF1
Ceramic/Steel
20H/24H
J-bend
100/135 mm
Rim
Shimano-SRAM 11sp
Black, red, gold, silver
290 g
*More colors are available as a customization option.
